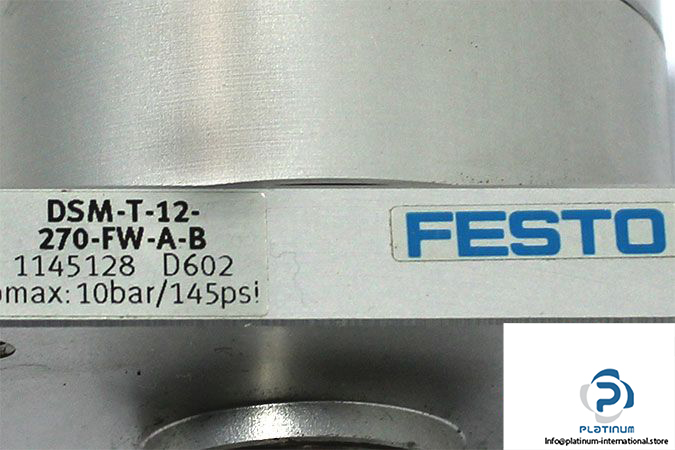

Festo 1145128 Rotary Actuator

Manufacturer: Festo

Type: Rotary Actuator

Model: DSM-T-12-270-FW-A-B

Part No.: 1145128

Size: 12

Swivel Angle: 0…270 deg

Operating Pressure: 2.5…10 bar

Fluid: Air

Design: Rotary Vane

Torque at 6 bar: 2.5 Nm

Position Sensing: For Proximity Sensor

Pneumatic Connection: M5

Ambient Temperature: -10…60 °C

Mode of Operation: Double-Acting

Materials: Aluminum

Weight: 0.32 kg
