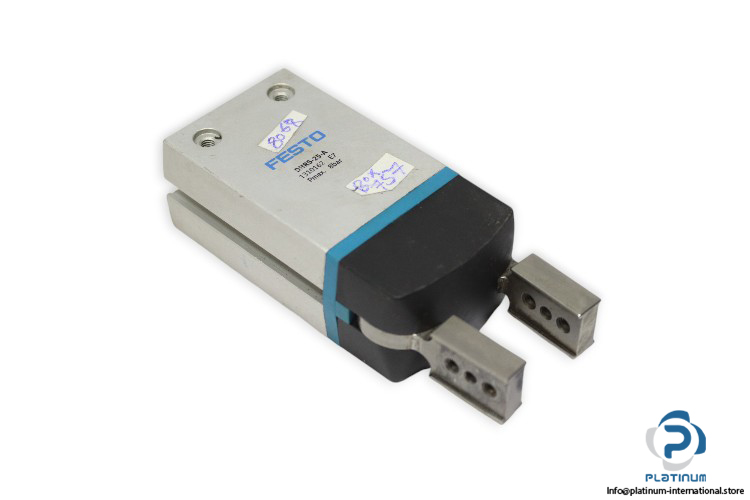

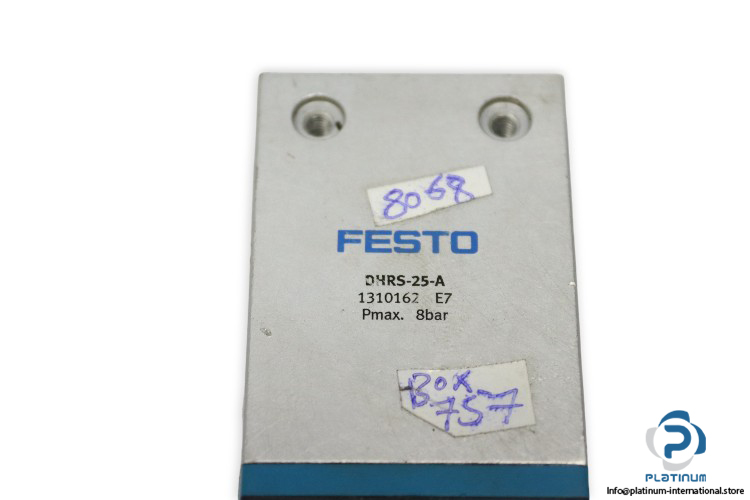

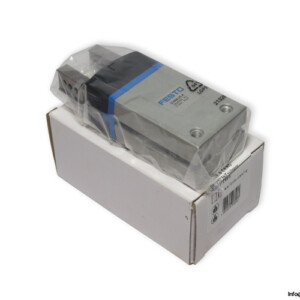

Festo 1310162 Radial Gripper

Manufacturer: FESTO
Type: Radial Gripper
Model: DHRS-25-A
Part No.: 1310162

Size: 25
Max. opening angle: 180 deg
Rotational symmetry: ≤0.2 mm
Pneumatic gripper repetition accuracy: ≤0.1 mm
Number of gripper jaws: 2
Mode of operation: Double-acting
Gripper function: Radial
Structural design: Positively driven motion sequence
Position sensing: For proximity sensor
Operating pressure: 2 bar … 8 bar
Maximum force on gripper jaw Fz, static: 75 N
Maximum torque on gripper jaw, Mx static: 3.2 Nm
Maximum torque on gripper jaw, My static: 3.2 Nm
Maximum torque on gripper jaw, Mz static: 3.2 Nm
Connection: 5 mm
