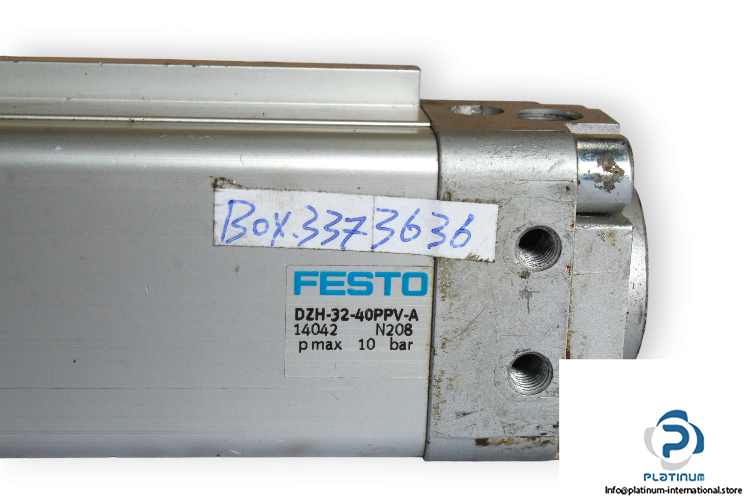

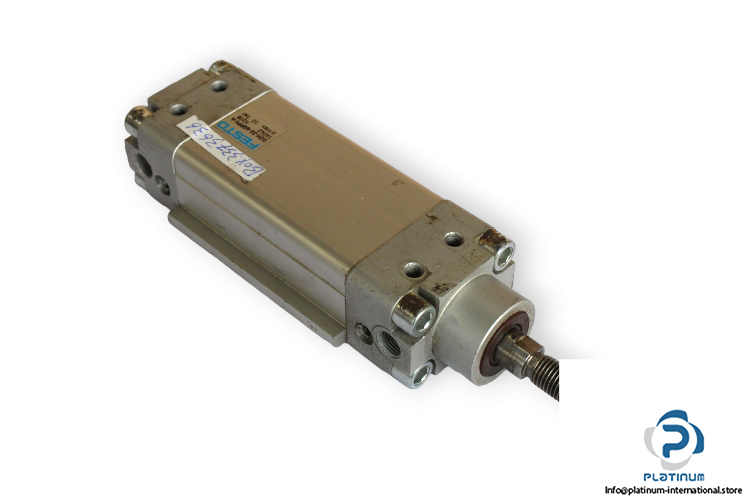

Festo 14042 Flat Cylinder

Manufacturer: FESTO
Type: Flat cylinder
Model: DZH-32-40PPV-A
Part No.: 14042

Stroke: 40 mm
Piston diameter: 32 mm
Max. angle of rotation of the piston rod: +/- 1.7 deg
Cushioning: Pneumatic cushioning, adjustable at both ends
Mode of operation: Double-acting
Position sensing: For proximity sensor
Operating pressure: 0.6 bar … 10 bar
Operating medium: Compressed air
Corrosion resistance class (CRC): 2 – Moderate corrosion stress
Ambient temperature: -20 °C … 80 °C
Pneumatic connection: G1/8
Cover material: Aluminum
