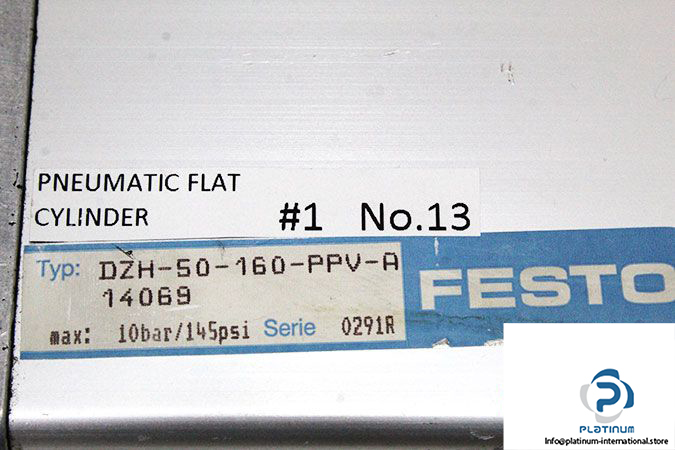

Festo 14069 Pneumatic Flat Cylinder

Manufacturer: FESTO

Type: Pneumatic Flat Cylinder

Model: DZH-50-160-PPV-A

Part.: 14069

Symbol: 00991235

Acting Type: Double-acting

Design: Flat

Working Pressure: 0.6 bar…10bar

Bore Size: 50 mm

Stroke: 160 mm

Position sensing: For proximity sensor

Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]

Cushioning: Pneumatic cushioning, adjustable at both ends, 23 mm

Type of Mounting: Optionally: With internal thread, With accessories

Pneumatic Connections: G 1/4

Housing / Cover materials: Aluminum

Ambient Temperature: -20 °C … 80 °C

Weight: 2.14 kg
