Festo 14322 10MM ISO Cylinder
Used
In stock3 unitsReady to ship
ISO Cylinder
The Festo DSNU-25-10-PPV-A ISO cylinder offers precision motion with a 25 mm bore, 10 mm stroke, and double-acting operation. It features stainless steel construction and adjustable pneumatic cushioning for enhanced control and durability.25ActingAdjustableboreCompactCushioningCylinderDoubleDSNU-25-10-PPV-AFestoISOmmPneumaticstainlessSteel
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

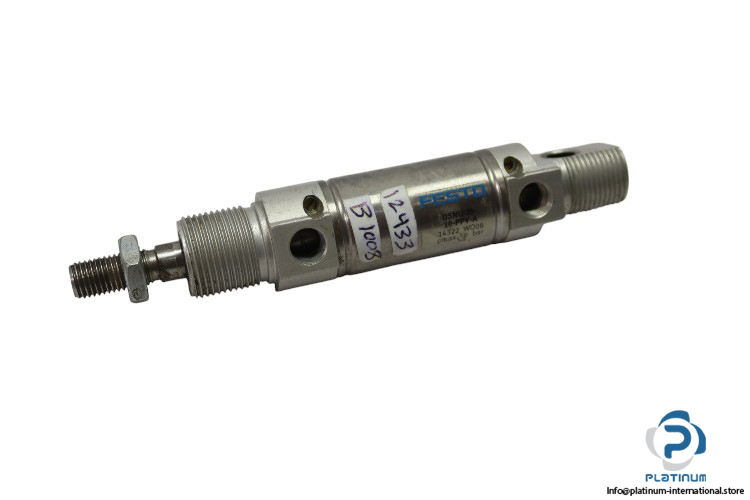

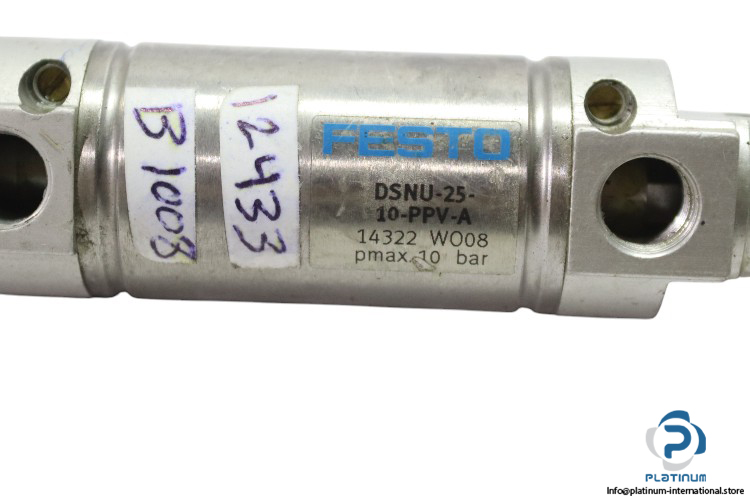

Festo DSNU-25-10-PPV-A “ ISO Cylinder
The Festo DSNU-25-10-PPV-A is a high-precision ISO cylinder designed for dynamic pneumatic applications. Built with corrosion-resistant stainless steel and featuring adjustable cushioning at both ends, it ensures long-lasting, smooth, and efficient performance in automated systems.
Manufacturer: Festo
Type: ISO Cylinder
Model: DSNU-25-10-PPV-A
Part No.: 14322
| Bore Diameter | 25 mm |
| Stroke | 10 mm |
| Pneumatic Connection | G1/8 |
| Mode of Operation | Double Acting |
| Operating Medium | Compressed Air |
| Max. Operating Pressure | 10 bar |
| Shape | Circular |
| Ambient Temperature | -20 to 80 °C |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Piston Rod Thread | Male |
| Rod Direction | One Side |
| Material Cover | Wrought Aluminum Alloy |
| Material Seals | NBR |
| Material Piston Rod | High-Alloy Stainless Steel |
| Material Cylinder Barrel | High-Alloy Stainless Steel |
