Festo 14322 25X430 ISO Cylinder
Used
In stock2 unitsReady to ship
ISO Cylinder
Festo DSNU-25-430-PPV-A double-acting ISO cylinder with 430 mm stroke and 25 mm piston diameter. Built from stainless steel and anodized aluminum for durability in pneumatic automation systems.25mm430mmActingCylinderDoubleDSNU-25-430-PPV-AFestoHighIndustrialISOPistonPneumaticPressurestainlessSteelStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

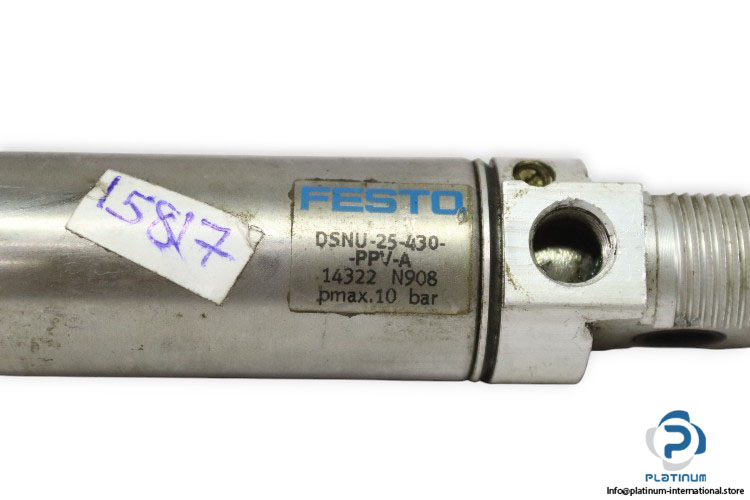

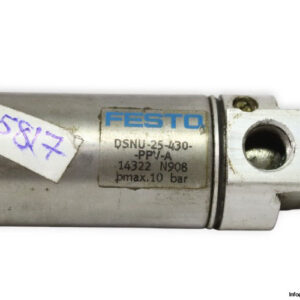

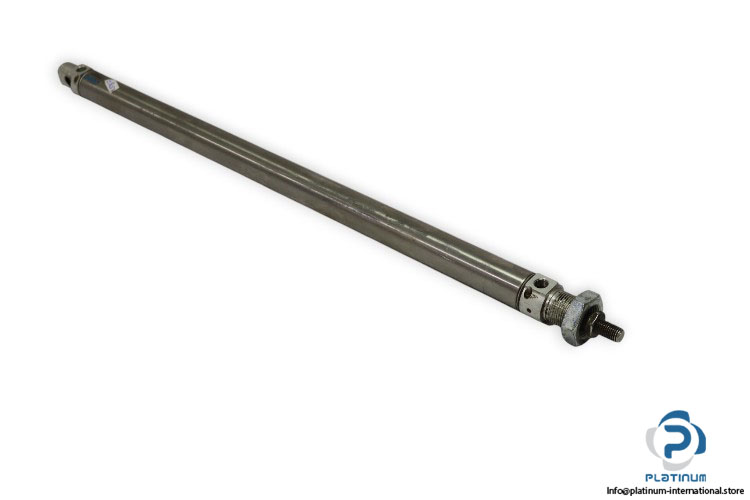

Festo DSNU-25-430-PPV-A ISO Cylinder
The Festo DSNU-25-430-PPV-A is a precision-engineered ISO cylinder designed for reliable performance in pneumatic automation systems. With a long 430 mm stroke, durable stainless-steel construction, and high efficiency double-acting operation, it is ideal for demanding industrial applications requiring consistent motion control.
Manufacturer: Festo
Type: ISO Cylinder
Model: DSNU-25-430-PPV-A
Part No.: 14322
Ref. Code: N908
| Stroke Length | 430 mm |
| Piston Diameter | 25 mm |
| Rod Diameter | 10 mm |
| Pneumatic Connection | G1/8 |
| Mode of Operation | Double Acting |
| Operating Medium | Compressed Air |
| Max. Operating Pressure | 10 bar |
| Shape | Circular |
| Ambient Temperature | -20 to 80 °C |
| Material Cover | Wrought aluminum alloy, Colorless anodized |
| Material Seals | NBR, TPE-U(PU) |
| Material Piston Rod | High-alloy stainless steel |
| Material Cylinder Barrel | High-alloy stainless steel |
