Festo 14322 25X70 ISO Cylinder
Used
In stock2 unitsReady to ship
ISO CYLINDER
The Festo DSNU-25-70-PPV-A ISO cylinder provides reliable double-acting motion and adjustable pneumatic cushioning, built with stainless steel and aluminum alloy for harsh industrial environments.2570ActingActuatorAdjustableboreCushioningCylinderDoubleDSNU-25-70-PPV-AFestoG1/8IndustrialISOmmPneumaticPneumaticsstainlessSteelStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

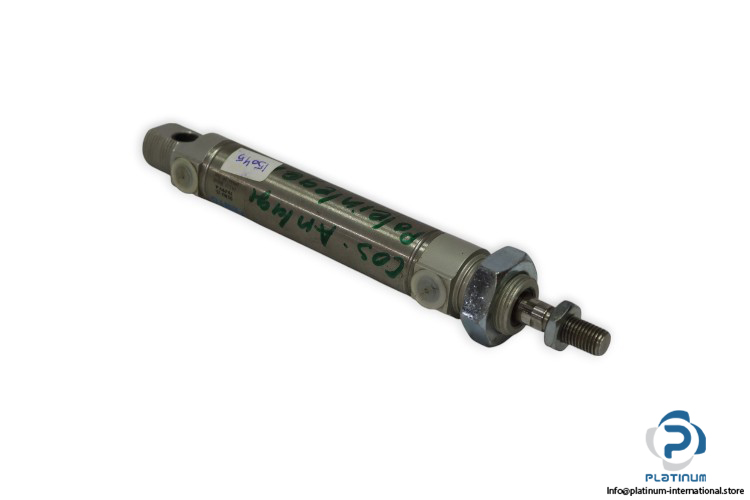

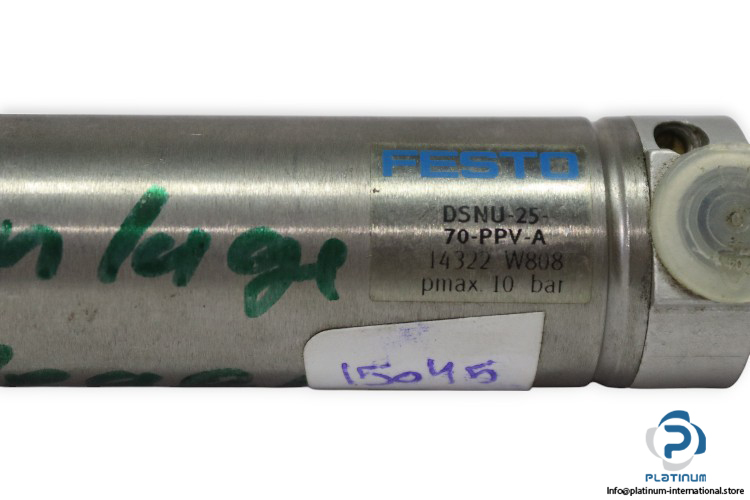

FESTO DSNU-25-70-PPV-A ISO CYLINDER
The Festo DSNU-25-70-PPV-A is a high-performance ISO pneumatic cylinder engineered for precise linear motion and reliable durability in industrial automation systems. It features robust materials, adjustable cushioning, and excellent pressure capacity for demanding environments. Manufacturer: Festo
Type: ISO Cylinder
Model: DSNU-25-70-PPV-A
Part No.: 14322
Ref. Code: W808
| Stroke Length | 70 mm |
| Piston Diameter | 25 mm |
| Pneumatic Connection | G1/8 |
| Mode of Operation | Double Acting |
| Operating Medium | Compressed Air |
| Max. Operating Pressure | 10 bar |
| Shape | Circular |
| Ambient Temperature | -20 to 80 °C |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Piston Rod Thread | Male |
| Rod Direction | One Side |
| Material Cover | Wrought Aluminum Alloy |
| Material Seals | NBR |
| Material Piston Rod | High-Alloy Stainless Steel |
| Material Cylinder Barrel | High-Alloy Stainless Steel |
