Festo 14322 ISO Cylinder
New
In stock3 unitsReady to ship
Festo DSNU-25-185-PPV-A ISO Cylinder “ Double-acting pneumatic cylinder with 25 mm piston and 185 mm stroke, G1/8 connection, and adjustable cushioning. Durable stainless steel construction for industrial use.
10ActingActuatorAdjustableAirbarCompressedCushioningCylinderDoubleDSNU-25-185-PPV-AFestoG1/8IndustrialISOPneumaticstainlessSteel
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

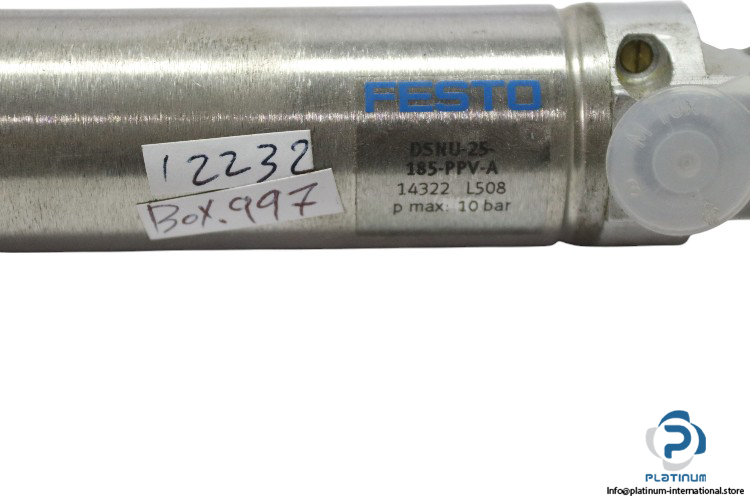

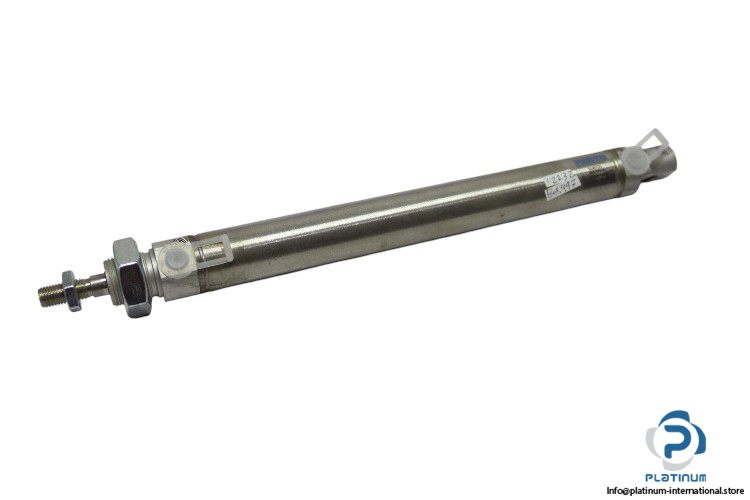

Festo DSNU-25-185-PPV-A ISO Cylinder
The Festo DSNU-25-185-PPV-A is a precision-engineered ISO pneumatic cylinder designed for reliable motion and high repeatability in industrial automation. Featuring a 25 mm piston diameter and 185 mm stroke, it delivers consistent double-acting performance under demanding conditions.
Manufacturer: Festo
Type: ISO Cylinder
Model: DSNU-25-185-PPV-A
Part No.: 14322
| Piston Diameter | 25 mm |
| Stroke | 185 mm |
| Pneumatic Connection | G1/8 |
| Mode of Operation | Double Acting |
| Operating Medium | Compressed Air |
| Max. Operating Pressure | 10 bar |
| Shape | Circular |
| Ambient Temperature | -20 to 80 °C |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Piston Rod Thread | Male |
| Rod Direction | One Side |
| Material Cover | Wrought Aluminum Alloy |
| Material Seals | NBR |
| Material Piston Rod | High-Alloy Stainless Steel |
| Material Cylinder Barrel | High-Alloy Stainless Steel |
