Festo 14944 Double Solenoid Valve
Used
In stock2 unitsReady to ship
DOUBLE SOLENOID VALVE
FESTO MVH-5/3G-3/8-B double solenoid valve with MSV-3 coil, featuring 5/3 closed function, 2200 l/min flow rate, and IP65 protection for pneumatic systems.5/3AirAluminiumClosedcoildie-castDoubleFestoflowHighIndustrialIP65MSV-3MVH-5/3G-3/8-BPneumaticRatesolenoidValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

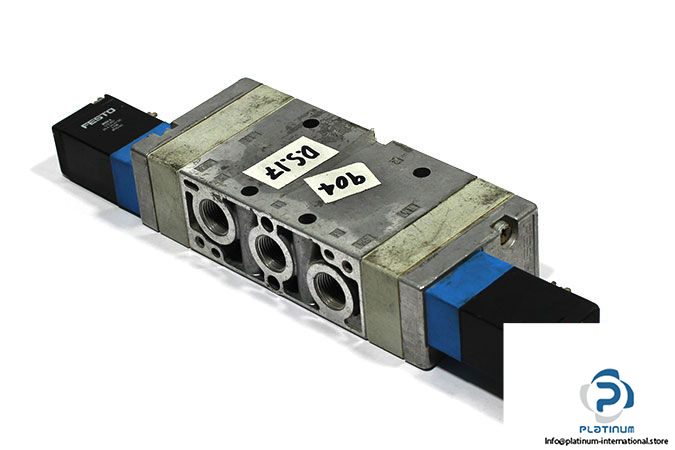

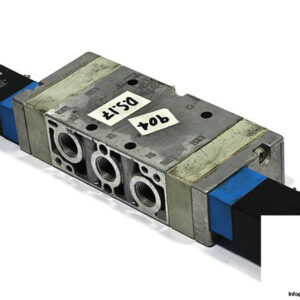

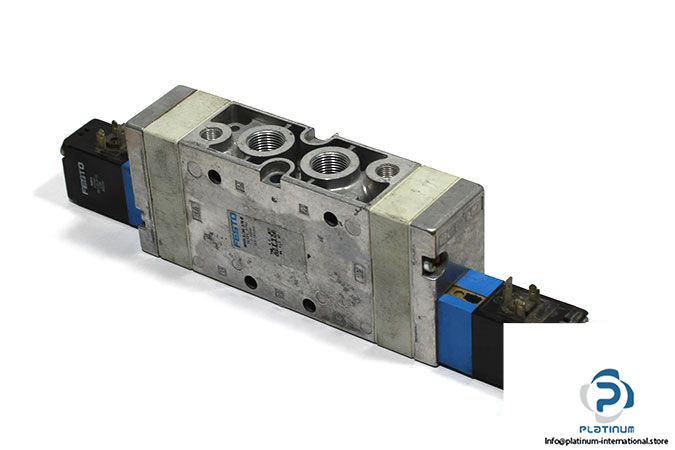

FESTO MVH-5/3G-3/8-B DOUBLE SOLENOID VALVE WITH MSV-3 SOLENOID COIL
The FESTO MVH-5/3G-3/8-B is a robust double solenoid valve engineered for high-performance pneumatic control. Designed with a 5/3 closed function and piston gate valve design, this valve provides precise air flow regulation. Combined with the FESTO MSV-3 solenoid coil, the unit is optimized for durability and fast switching operations in demanding industrial environments.
Manufacturer: FESTO
Type: Double Solenoid Valve

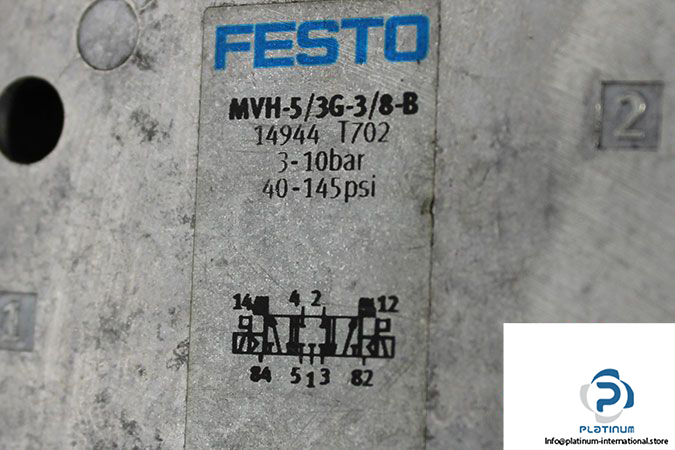

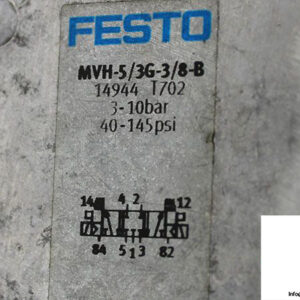

Model: MVH-5/3G-3/8-B
Part No.: 14944
Solenoid Coil Technical Information
| Fluid | Air |
| Design | Piston Gate Valve |
| Function | 5/3 Closed |
| Type of Actuation | Electrically |
| Operating Pressure | 3 / 10 bar |
| Nominal Flow Rate | 2200 l/min |
| Pneumatic Connection | G3/8 |
| Material | Die-cast Aluminium |
| Ambient Temperature | -5 / 50 °C |

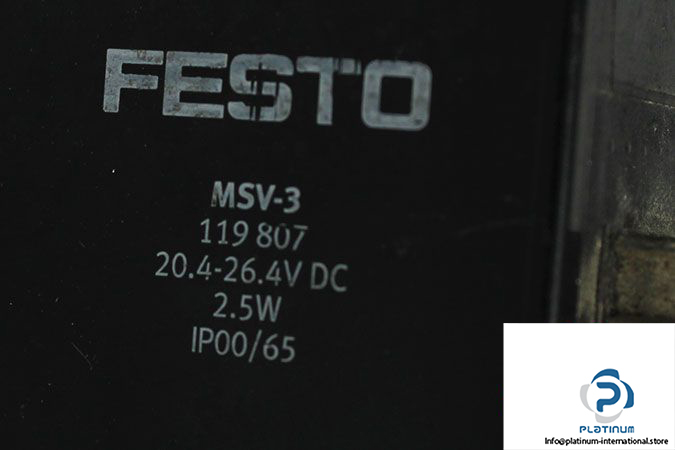

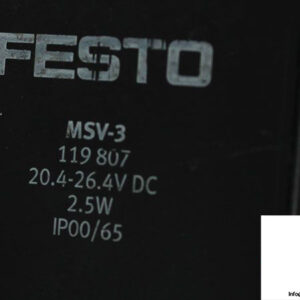

| Attachment | FESTO 119807 SOLENOID COIL |
| Part No. | 119807 |
| Supply Voltage | 20.4 ... 26.4 V DC |
| Power Consumption | 2.5 W |
| Protection Class | IP65 |
