Festo 150093 Linear Drive Unit
Used
In stock1 unitReady to ship
Linear Drive Unit
Festo SLE-32-320-KF-A linear drive unit with 320 mm stroke and recirculating guide. Delivers up to 483 N advance force and 415 N return force. Includes ISO Cylinder DNC-32-320-PPV-A for double-acting pneumatic operation.12150093195663ActuatorAttachment.barCylinderDNC-32-320-PPV-ADriveFestoForceGuideHighIndustrialISOLinearPneumaticR808RecirculatingSLE-32-320-KF-AUnit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

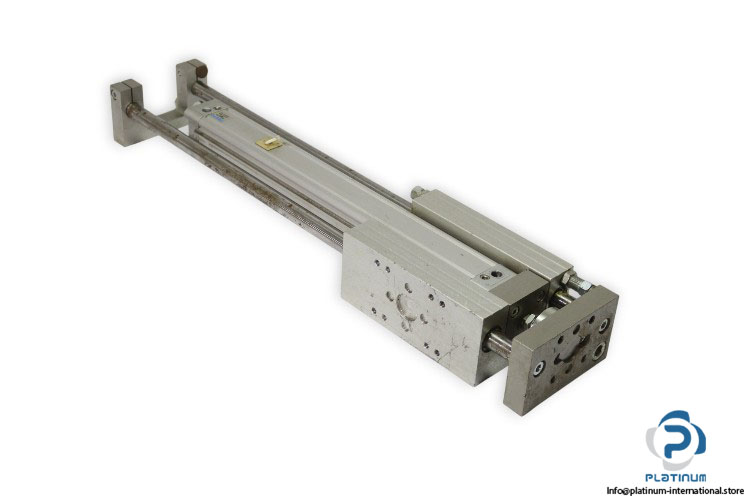

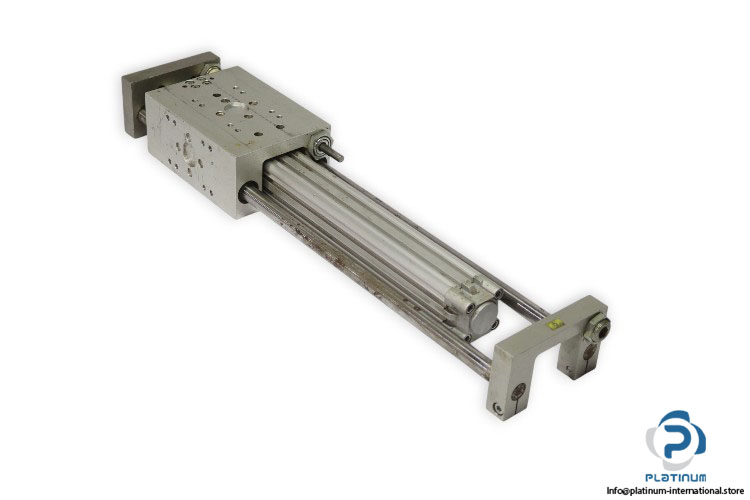

Festo SLE-32-320-KF-A Linear Drive Unit
The Festo SLE-32-320-KF-A is a high-performance pneumatic linear drive unit featuring a 320 mm stroke and a recirculating ball bearing guide. Engineered for precise motion control, it delivers reliable operation in demanding automation environments. Includes an ISO Cylinder DNC-32-320-PPV-A for enhanced stroke stability and accuracy.
Manufacturer: Festo
Type: Linear Drive Unit

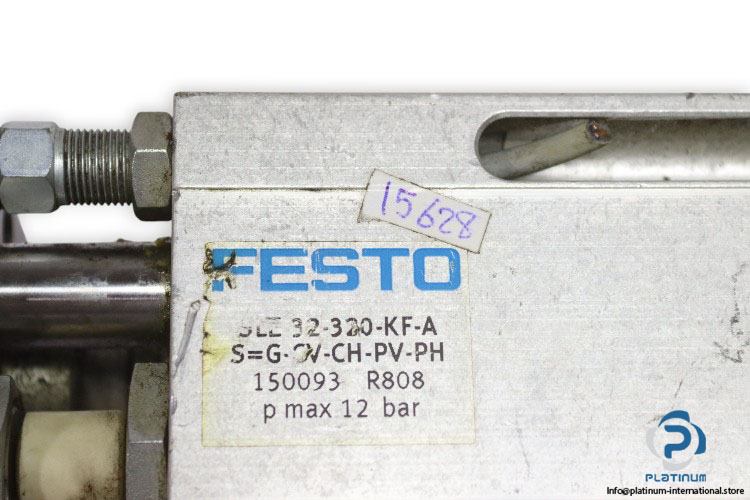

Model: SLE-32-320-KF-A S=G-GV-CH-PV-PH
Part No.: 150093
Ref. Code: R808
Attachment Information
| Diameter | 32 mm |
| Stroke | 320 mm |
| Guide | Recirculating Ball Bearing Guide |
| Design | Guidance |
| Max. Pressure | 12 bar |
| Theoretical Force at 6 bar (Return Stroke) | 415 N |
| Theoretical Force at 6 bar (Advance Stroke) | 483 N |
| Ambient Temperature | -20 to 80 °C |
| Material Cover | Die-Cast Aluminum |
| Material Seals | PA |
| Material Housing | Die-Cast Aluminum |
| Material Piston Rod | High-Alloy Steel |
| Material Cylinder Barrel | Wrought Aluminum Alloy |

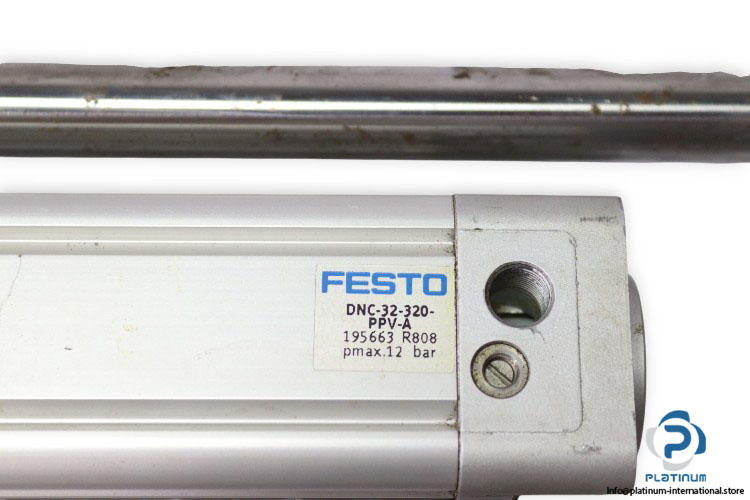

| Part No. | 195663 |
| Ref. Code | R808 |
| Media | Compressed Air |
| Stroke | 320 mm |
| Piston Diameter | 32 mm |
| Max. Pressure | 12 bar |
| Pneumatic Connection | G 1/8 |
| Design | Double-Acting |
| Material Cover | Die-Cast Aluminum (Coated) |
| Material Seals | TPE-U (PU) |
| Material Piston Rod | High-Alloy Steel |
