Festo 151873 Solenoid Pneumatic Valve
Used
In stock6 unitsReady to ship
93,50$
DOUBLE SOLENOID PNEUMATIC VALVE
FESTO MFH-5/3G-D-3 C 5/2-way pneumatic valve with pilot control, high flow rate, and electrical actuation for compressed air applications.5/2-WayAirCCompressedControlControlledDirectionalDoubleFestoIndustrialMFH-5/3G-D-3PilotPneumaticPneumaticssolenoidValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

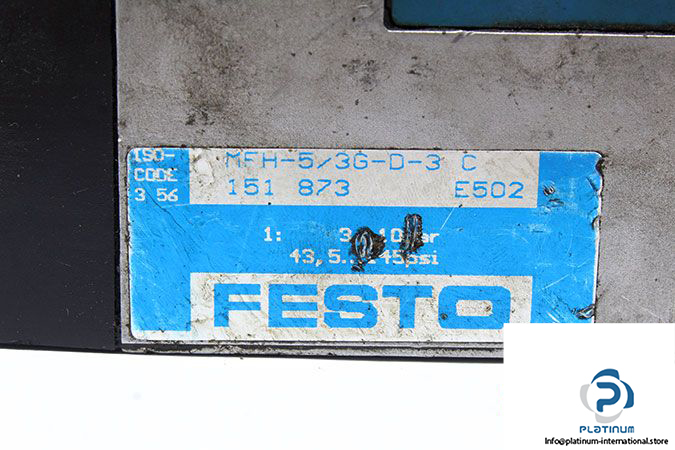

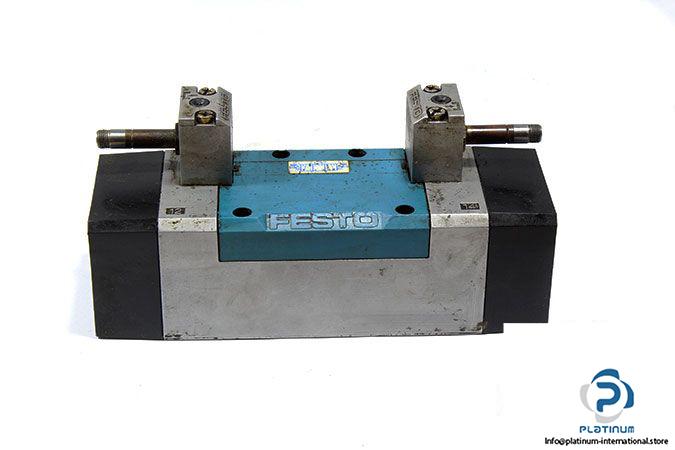

FESTO MFH-5/3G-D-3 C DOUBLE SOLENOID PNEUMATIC VALVE
The FESTO MFH-5/3G-D-3 C is a high-performance directional control valve designed for industrial pneumatic systems. With electrical actuation and pilot-controlled functionality, it delivers efficient flow regulation and robust durability under demanding conditions.
Manufacturer: FESTO
Type: Double Solenoid Pneumatic Valve
Model: MFH-5/3G-D-3 C
Part No.: Ž151873Ž
Pneumatic Connections:
| Fluid | Air; Compressed air |
| Type of Actuation | Electrical |
| Function | Directional control valve, 5/2-way valve |
| Operating Pressure | 3 bar / 10 bar |
| Standard Nominal Flow Rate | 1000 l/min |
| Type of Control | Pilot-controlled |
| Working Port 1, 2, 3, 4, 5 | G1/8 |
| Pilot Exhaust Air Port 84, 82 | M5 |
| Width | 26 mm |
| Plug Diameter | 8 mm |
| Housing Material | Die-cast aluminum |
| Seals Material | NBR |
| Fluid Temperature | -5 / 50 °C |
