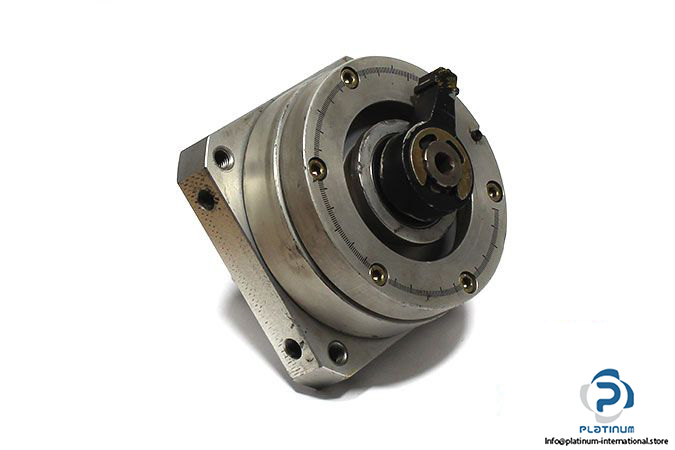

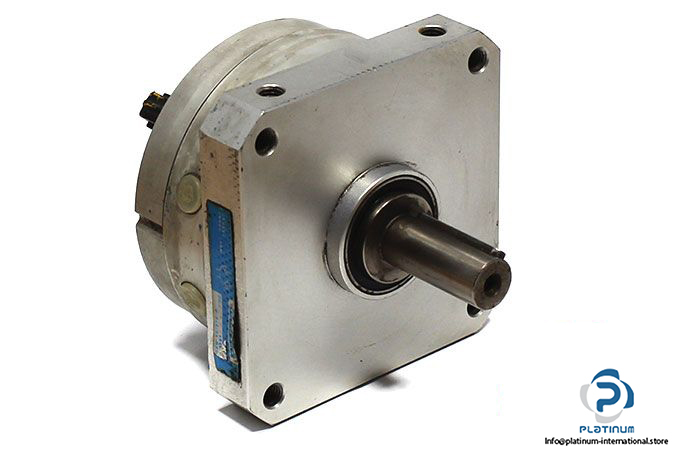

Festo 152594 Swivel Module

Manufacturer: Festo

Type: Swivel Module

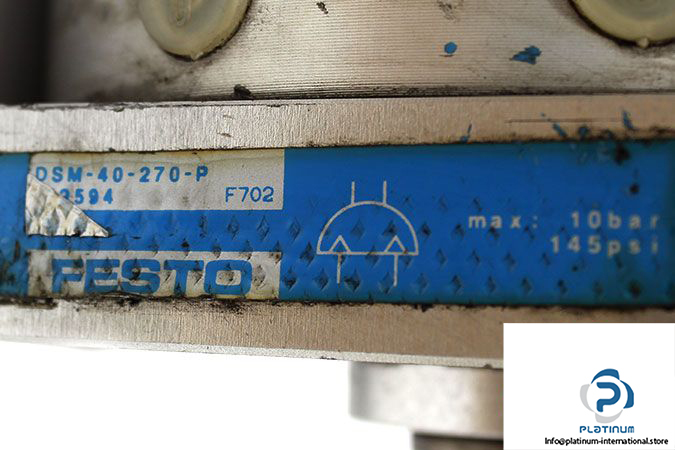

Model: DSM-40-270-P

Alternative Model: DSM-40-270-P-A-B

Part No.: 152594

Alternative Part No: 547586

Size: 40

Cushioning Angle: 2.2 deg

Range of Swivel Angle: 0…270 deg

Swivel Angle: 270 deg

Operating Pressure: 1.5…10 bar

Fluid: Air

Design: Rotary Vane

Torque at 6 bar: 20 Nm

Pneumatic Connection: G1/8”

Ambient Temperature: -10…60 °C

Mode of Operation: Double-Acting

Materials: Aluminum

Weight: 2.43 kg
