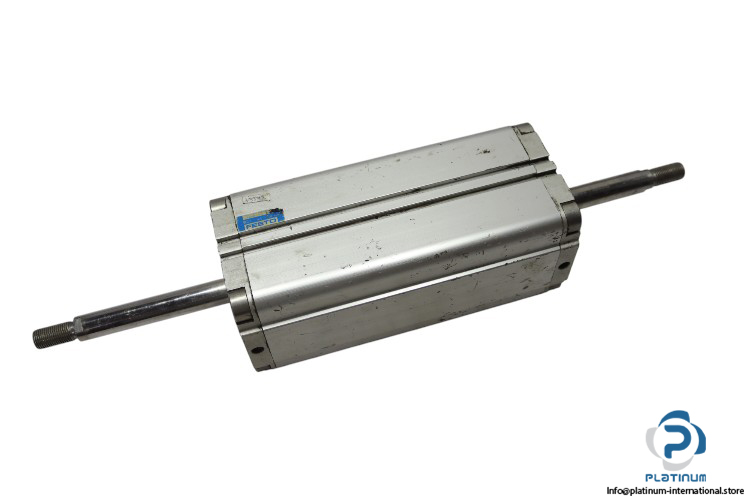

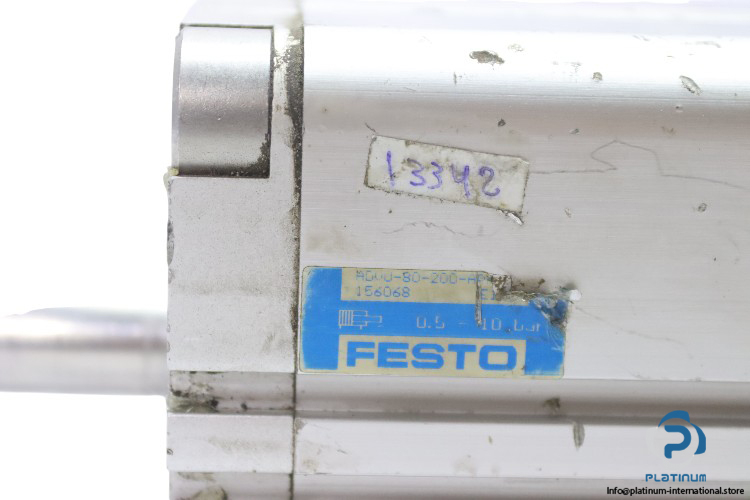

Festo 156068 Compact Cylinder
Used
In stock1 unitReady to ship
99,99$
Double Action Compact Cylinder FESTO double action compact cylinder for compressed air systems, featuring an 80 mm bore, 200 mm stroke, double-acting operation, and elastic end cushioning for industrial pneumatic applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 156068 |
| Fluid | Compressed Air |
| Cylinder Diameter | 80 mm |
| Stroke | 200 mm |
| Mode of operation | Double-acting |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Max Working Pressure | 10 bar |
| Pneumatic Connection | g1/8 |
| Ambient Temperature Range | -20… 80°C |
| Material collar screws | Galvanised steel |
| Material cover | Wrought aluminium alloy |
| Condition | Used |
| SKU | 1096776 |
| Weight | 4,5 |
