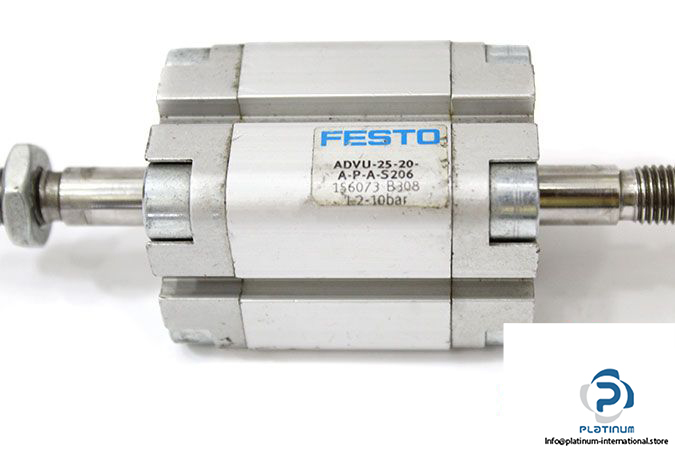

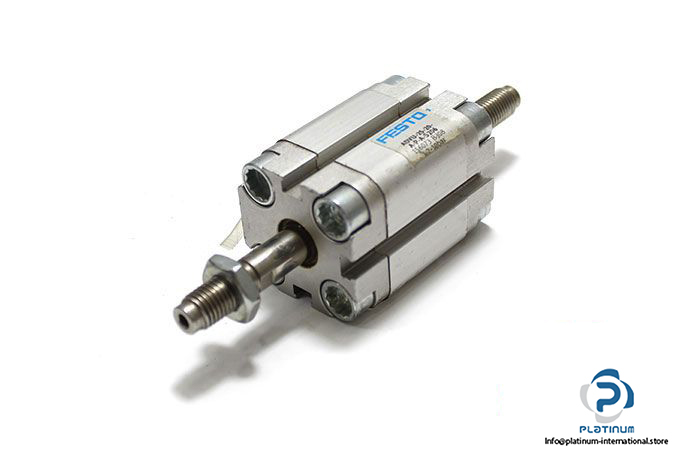

Festo 156073 Compact Cylinder

Manufacturer: FESTO

Type: Double Acting Compact Cylinder

Model: ADVU-25-20-A-P-A-S206

Part No.: 156073

Materials

  Piston rod: High alloy stainless steel

  Cylinder Tube: Wrought Aluminum alloy

Stroke Length: 20 mm

Piston Diameter: 25 mm

Piston rod end: Male thread

Variant: Through, hollow piston rod

Operating Pressure: 1 … 10 bar

Mode of operation: Double-acting

Cushioning: Flexible cushioning rings/plates at both ends

Position sensing: For proximity sensing

Pneumatic Connection: M5

Heat Resistant: up to 120 °C

Weight: 0.28 kg
