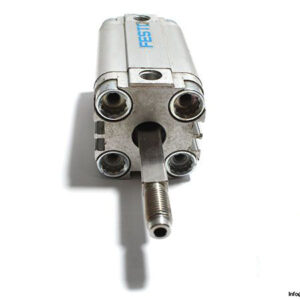

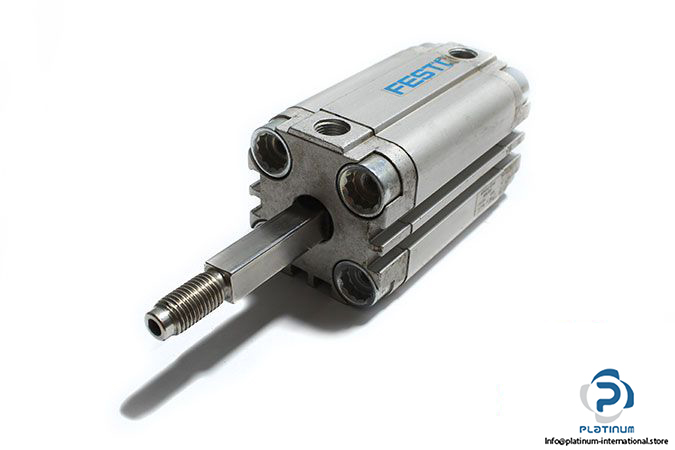

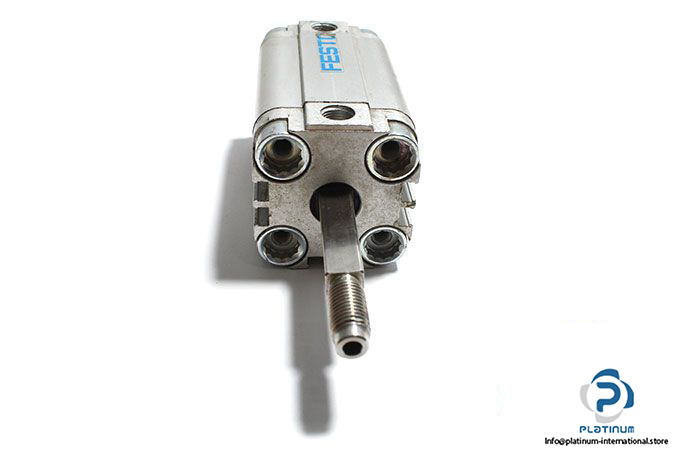

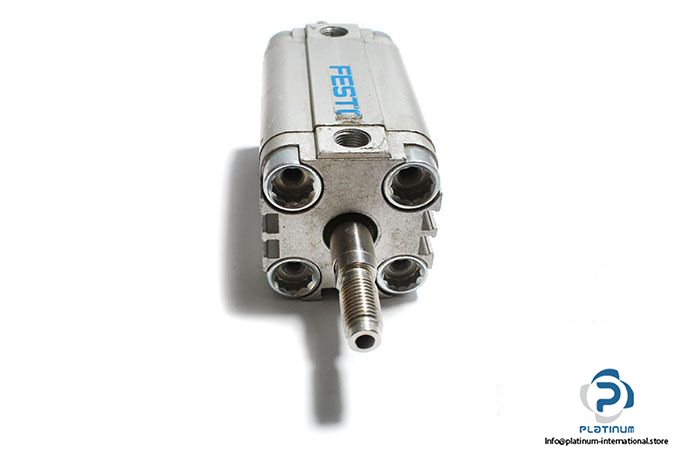

Festo 156164 Compact Cylinder

Manufacturer: FESTO

Type: Double Acting Compact Cylinder

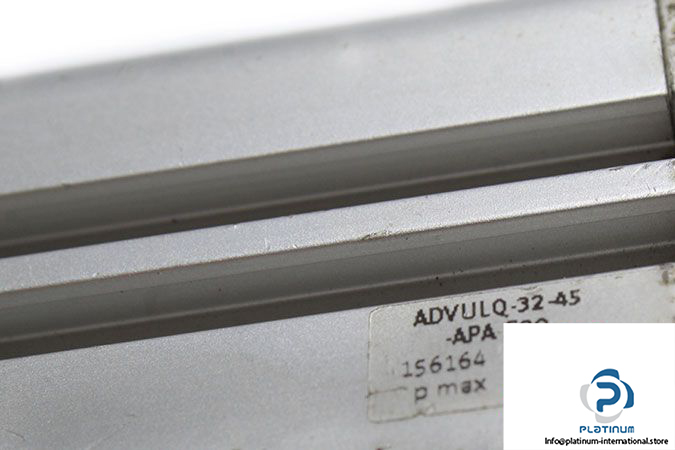

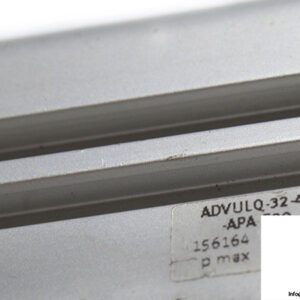

Model: ADVULQ-32-45-APA S20

Part No.: 156164

Materials

  Piston rod: High alloy stainless steel

  Cylinder Tube: Wrought Aluminum alloy

  Piston Rod Type: Square piston rod

Stroke Length: 45 mm

Piston Diameter: 32 mm

Piston rod end: Male thread

Operating Pressure: 0.8 … 10 bar

Mode of operation: Double-acting

Cushioning: Flexible cushioning rings/plates at both ends

Position sensing: For proximity sensing

Variant: Through, hollow piston rod

Pneumatic Connection: G1/8

Temperature: -20 … 80 °C

Weight: 0.53 kg
