Festo 156214 Compact Cylinder
New
In stock2 unitsReady to ship
Compact Cylinder
The Festo ADVUL-32-25-P-A-S6 compact cylinder operates with compressed air and features double-acting design, elastic cushioning, and heat-resistant seals. Ideal for a wide range of industrial applications with an operating pressure of 1 to 10 bar.2532ActingADVUL-32-25-P-A-S6AirCompactCompressedCylinderdiameterDoubleFestoFPMheat-resistantIndustrialmmPistonPneumaticSealsStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

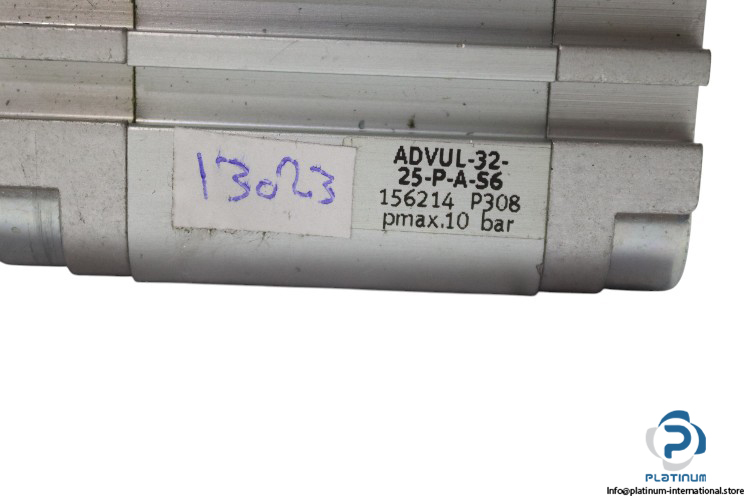

Festo ADVUL-32-25-P-A-S6 “ Compact Cylinder
The Festo ADVUL-32-25-P-A-S6 compact cylinder is engineered for high-performance applications in pneumatic systems. With an operating pressure range of 1 to 10 bar, this double-acting piston cylinder provides reliable operation with heat-resistant seals for enhanced durability in demanding environments.
Manufacturer: Festo
Type: Compact Cylinder
Model: ADVUL-32-25-P-A-S6
Part No.: 156214 P308
| Operating Medium | Compressed air |
| Design of Cylinder | Piston |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Position Detection | Via proximity switch |
| Variants | Heat-resistant seals max. 120°C |
| Mode of Operation | Double-acting |
| Operating Pressure | 1 to 10 bar |
| Piston Diameter | 32 mm |
| Stroke | 25 mm |
| Pneumatic Connection | G1/8 |
| Cover Material | Wrought aluminum alloy |
| Material Dynamic Seals | FPM |
| Material Piston Rod | High-alloy stainless steel |
| Ambient Temperature Range | 0 to 120°C |
