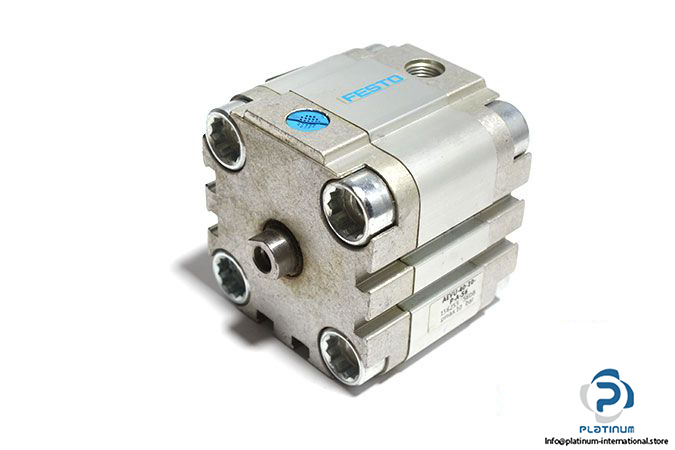

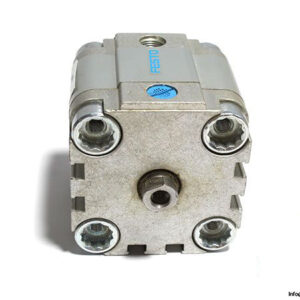

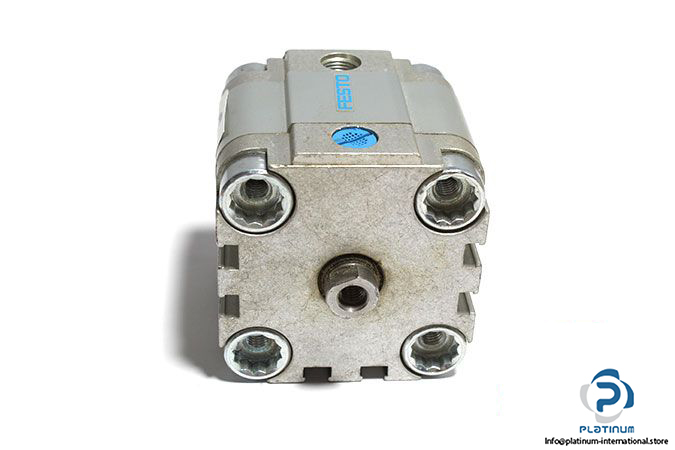

Festo 156255 Compact Cylinder

Manufacturer: FESTO

Type: Single Acting Compact Cylinder

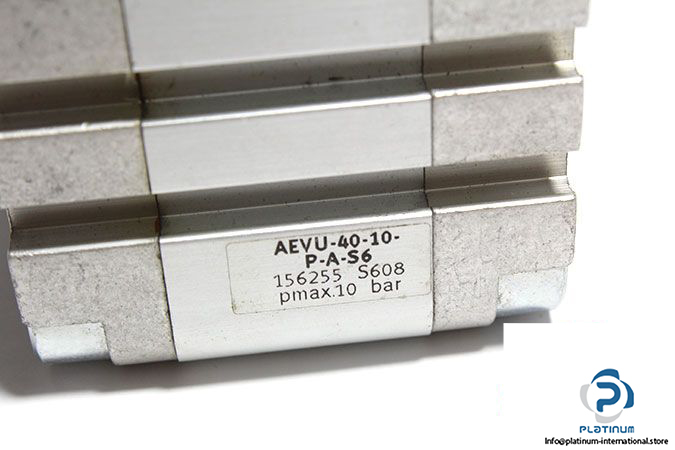

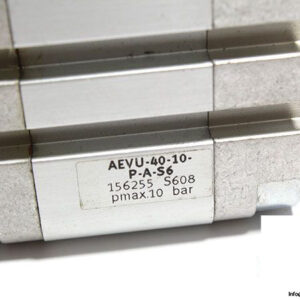

Model: AEVU-40-10-P-A-S6

Part No.: 156255

Materials

  Piston rod: High alloy stainless steel

  Cylinder Tube: Wrought Aluminum alloy

Stroke Length: 10 mm

Piston Diameter: 40 mm

Piston rod end: Female thread

Operating Pressure: 0.8 … 10 bar

Mode of operation: Single-acting

Cushioning: Flexible cushioning rings/plates at both ends

Position sensing: For proximity sensing

Variants: Heat resistant up to 120 °C

Pneumatic Connection: G1/8

Weight: 0.50 kg
