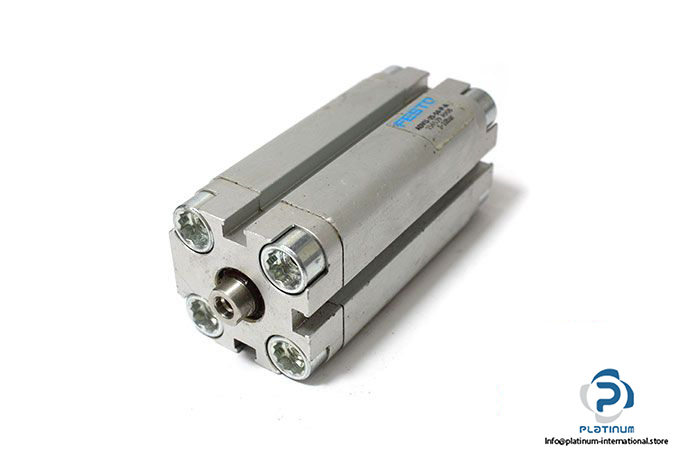

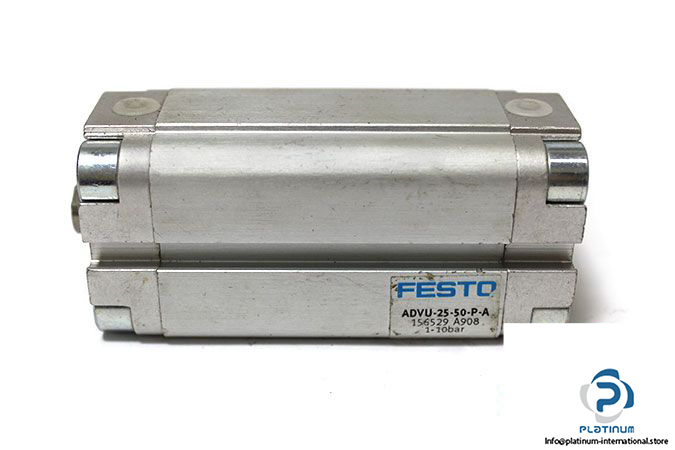

Festo 156529 Compact Cylinder

Manufacturer: FESTO

Type: Double Acting Compact Cylinder

Model: ADVU-25-50-P-A

Part No.: 156529

Materials

  Piston rod: High alloy stainless steel

  Cylinder Tube: Wrought Aluminum alloy

Stroke Length: 50 mm

Piston Diameter: 25 mm

Piston rod end: Female thread

Operating Pressure: 1 … 10 bar

Mode of operation: Double-acting

Cushioning: Flexible cushioning rings/plates at both ends

Position sensing: For proximity sensing

Pneumatic Connection: M5

Temperature: -20 … 80 °C
