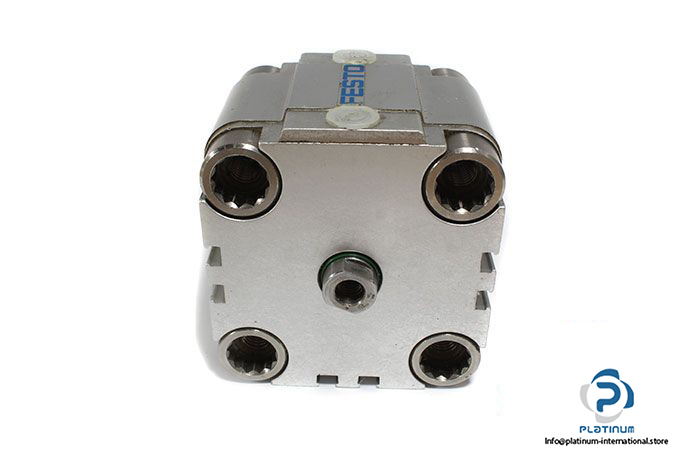

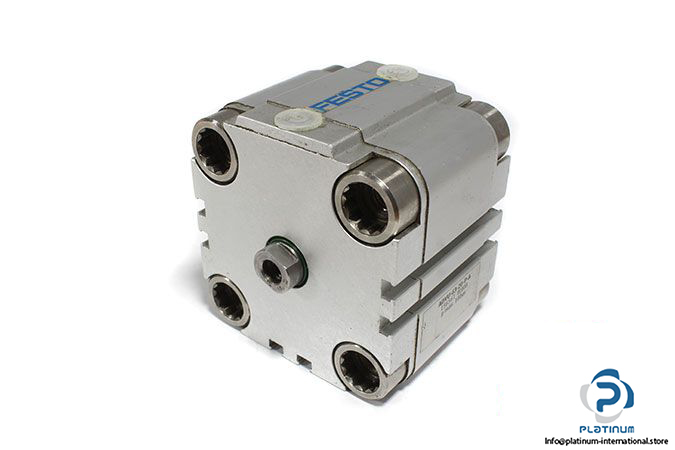

Festo 156561 Compact Cylinder

Manufacturer: FESTO

Type: Double-Acting Compact Cylinder

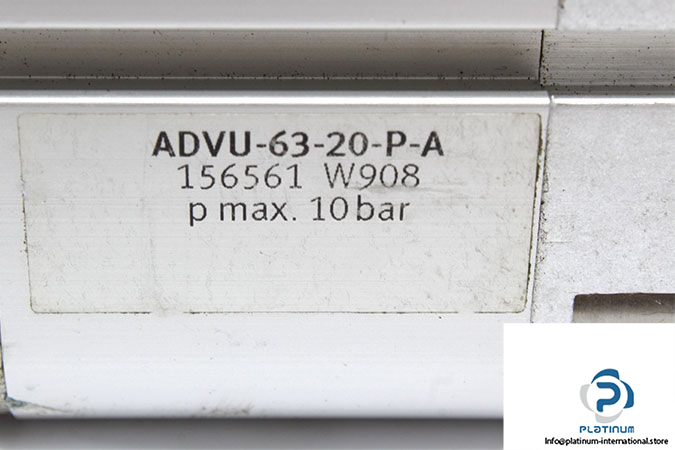

Model: ADVU-63-20-P-A

Part No.: 156561

Materials

,,Cylinder Tube: Aluminium wrought alloy Smooth anodised

,,Piston rod: High-alloy steel

Stroke Length: 20 mm

Piston Diameter: 63 mm

Piston rod thread: Female thread

Cushioning: Flexible cushioning rings/plates at both ends

Position sensing: For proximity sensing

Pneumatic Connection: G 1/8

Operating Pressure: 1 … 10 bar

Mode of operation: Double-acting

Temperature: -20 … 80 °C

Weight: 1.24 kg
