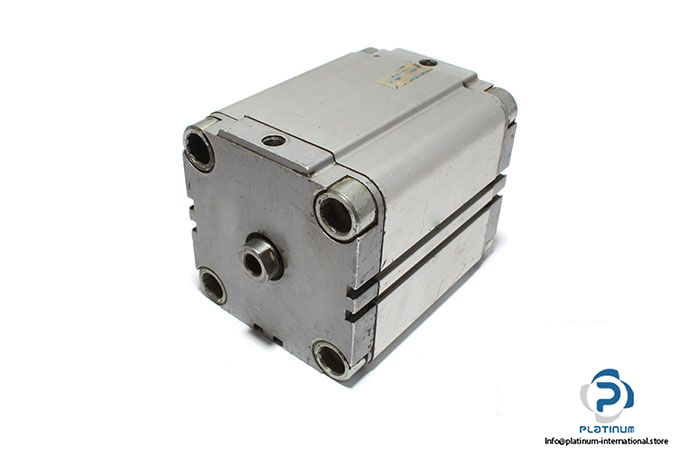

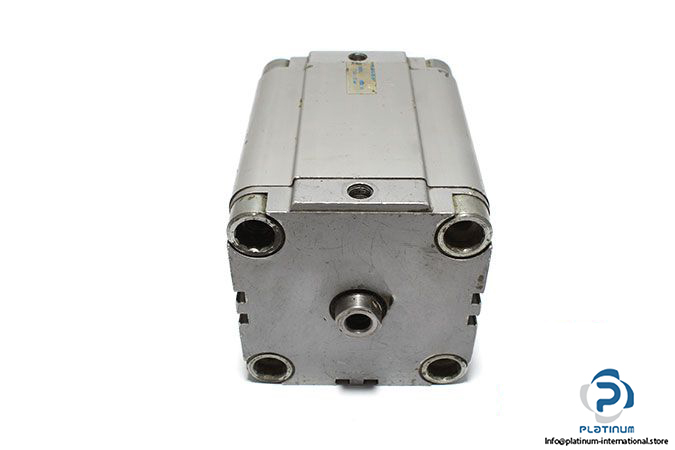

Festo 156576 Compact Cylinder

Manufacturer: FESTO

Type: Double-Acting Compact Cylinder

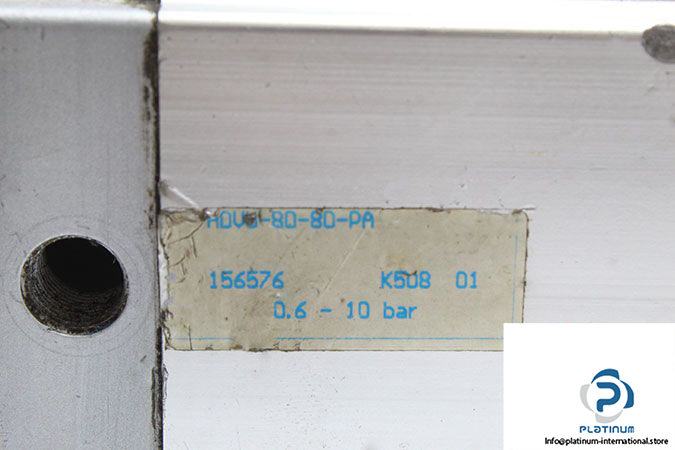

Model: ADVU-80-80-PA

Part No.: 156576

Materials

Cylinder Tube: Aluminium wrought alloy Smooth anodised

Piston rod: High-alloy steel

Stroke Length: 80 mm

Piston Diameter: 80 mm

Piston rod thread: Female thread

Cushioning: Flexible cushioning rings/plates at both ends

Position sensing: For proximity sensing

Pneumatic Connection: G 1/8

Operating Pressure: 1 … 10 bar

Mode of operation: Double-acting

Temperature: -20 … 80 °C

Weight: 2.70 kg
