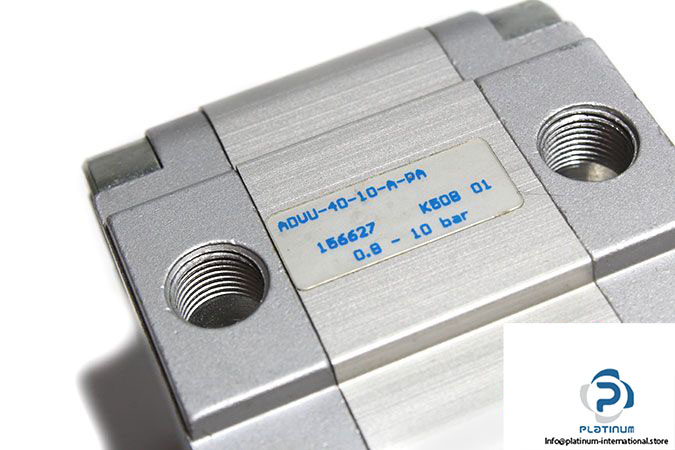

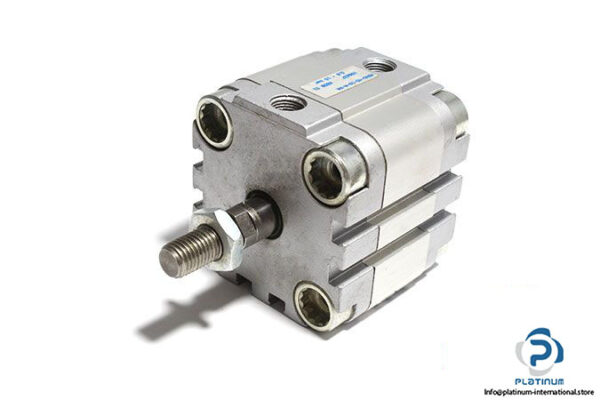

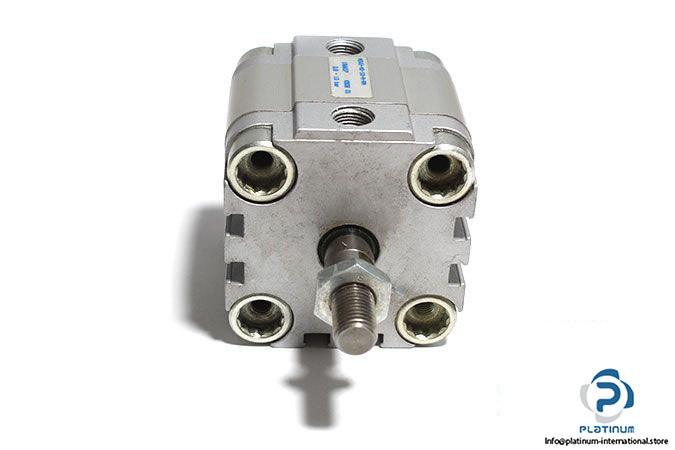

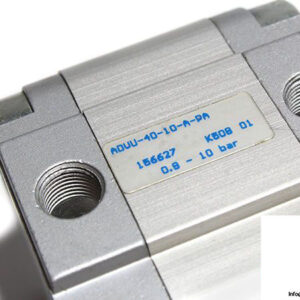

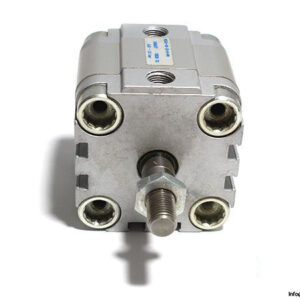

Festo 156627 Compact Cylinder

Manufacturer: FESTO

Type: Double Acting Compact Cylinder

Model: ADVU-40-10-A-PA

Part No.: 156627

Materials

  Piston rod: High alloy stainless steel

  Cylinder Tube: Wrought Aluminum alloy

Stroke Length: 10 mm

Piston Diameter: 40 mm

Piston rod end: Male thread

Operating Pressure: 0.8 … 10 bar

Mode of operation: Double-acting

Cushioning: Flexible cushioning rings/plates at both ends

Position sensing: For proximity sensing

Variants: Piston rod at one end

Pneumatic Connection: G1/8

Impact energy at the end positions: 0,52 j

Theoretical force at 6 bar, Retracting: 686 N

Theoretical force at 6 bar, Advancing: 754 N

Temperature: -20 … 80 °C

Weight: 0.51 kg
