Festo 156868 Compact Cylinder
New
In stock3 unitsReady to ship
Compact Cylinder
The FESTO ADVUL-25-15-P-A compact cylinder features a 15 mm stroke, 25 mm piston, M5 connection, and double-acting operation with integrated elastic cushioning.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

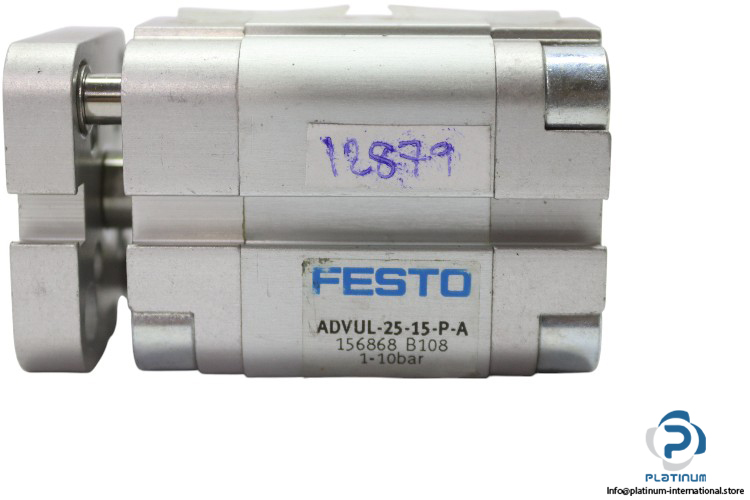

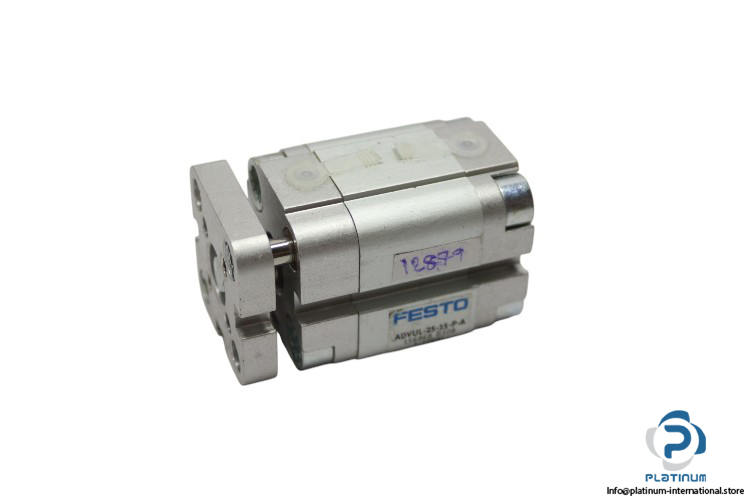

FESTO ADVUL-25-15-P-A Compact Cylinder
The FESTO ADVUL-25-15-P-A (Part No. 156868) is a high-performance compact cylinder designed for space-saving pneumatic applications. With elastic cushioning, optional mounting positions, and position detection compatibility, it delivers reliable motion control in demanding environments.
Manufacturer: FESTO
Type: Compact Cylinder
Model: ADVUL-25-15-P-A
Part No.: 156868
| Stroke | 15 mm |
| Piston Diameter | 25 mm |
| Pneumatic Connection | M5 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting Position | Optional |
| Design | Piston, Piston rod |
| Position Detection | Via proximity switch |
| Variants | Piston rod at one end |
| Operating Pressure | 0.1 MPa...1 MPa / 1 bar...10 bar |
| Mode of Operation | Double-acting |
| Operating Medium | Compressed air |
| Ambient Temperature | -20 ... 80 °C |
