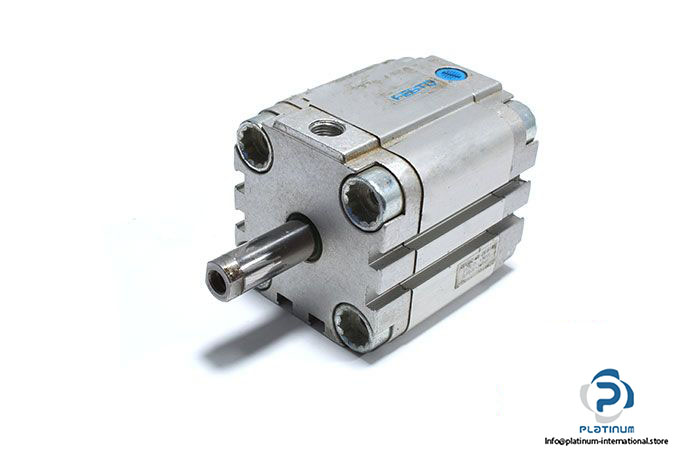

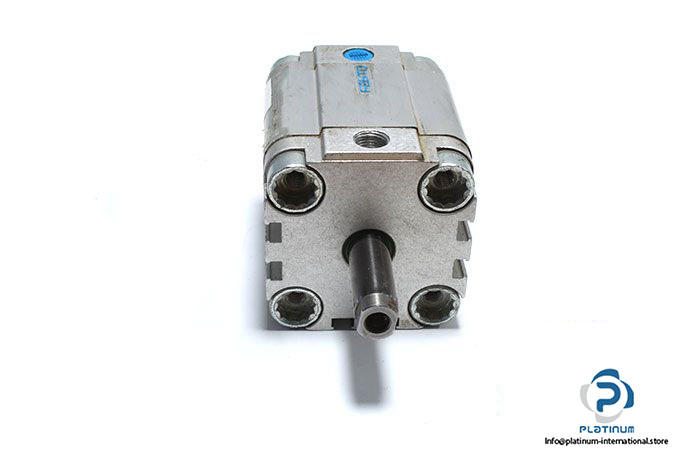

Festo 157235 Compact Cylinder

Manufacturer: FESTO

Type: Single Acting Compact Cylinder

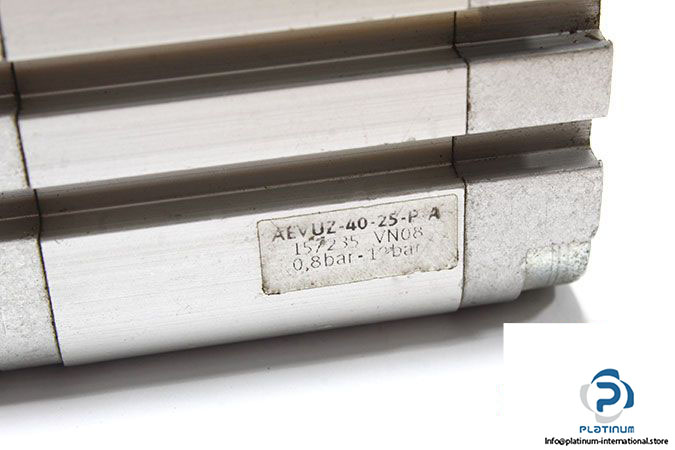

Model: AEVUZ-40-25-P-A

Part No.: 157235

Material

..Cover: Wrought Aluminum alloy

..Piston rod: High alloy steel, non-corrosive

..Cylinder barrel: Wrought Aluminum alloy

Stroke Length: 25 mm

Piston Diameter: 40 mm

Piston rod end: Female thread

Operating Pressure: 1.3 … 10 bar

Operating medium: Compressed air

Mode of operation: Single-Acting, Pulling Action

Assembly position: Any

Cushioning: Flexible cushioning rings/plates at both ends

Position sensing: For proximity sensing

Temperature: -20 … 80 °C

Weight: 0.58 kg
