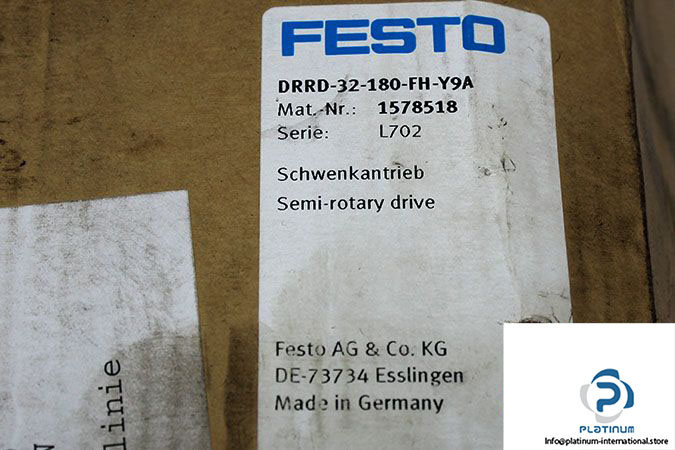

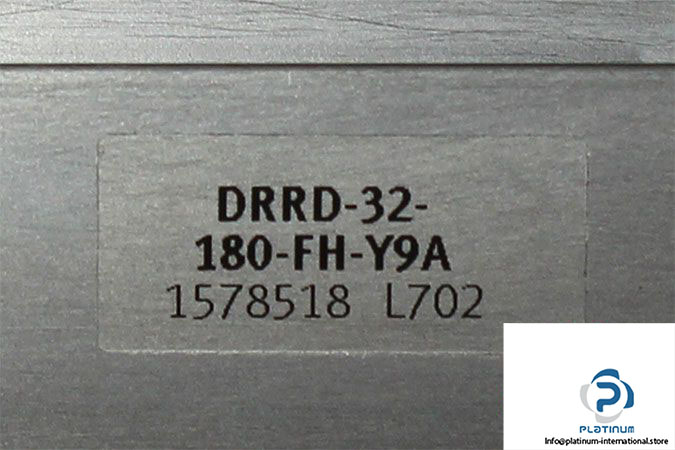

Festo 1578518 Rotary Actuator

Manufacturer: Festo

Type: Rotary Actuator

Model: DRRD-32-180-FH-Y9A

Part No.: 1578518

Size: 32

Adjustment Range of Swivel Angle, Both Sides: +10 /-190 deg

Cushioning Angle: 82 deg

Swivel Angle: 180 deg

Operating Pressure: 2…10 bar

Fluid: Air

Design: Gear Rack/Pinion

Position Sensing: For Proximity Sensor

Torque At 6 bar: 10.1 Nm

Pneumatic Connection: G1/8”

Ambient Temperature: -10…60 °C

Mode of Operation: Double-Acting

Materials: Aluminum

Weight: 3.10 kg



Attachment: FESTO 3017682 PNEUMATIC SHOCK ABSORBER

Manufacturer: Festo

Type: Pneumatic Shock Absorber

Model: DYSD-16-15-Y1F

Part No.: 3017682

Size: 16

Stroke: 15 mm

Housing Material: High-Alloy Steel

FESTO 191409 CENTERING SLEEVE

Manufacturer: Festo

Type: Centering Sleeve

Model: ZBH-15

Part No.: 191409 / 5171902

Size: 15

Sleeve Material: High-Alloy Stainless Steel
