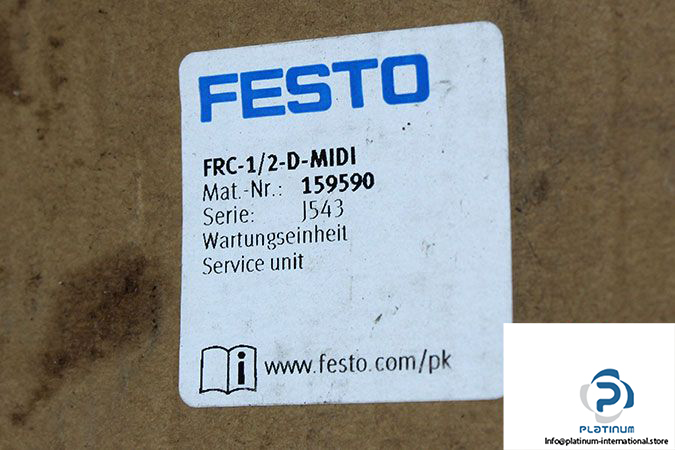

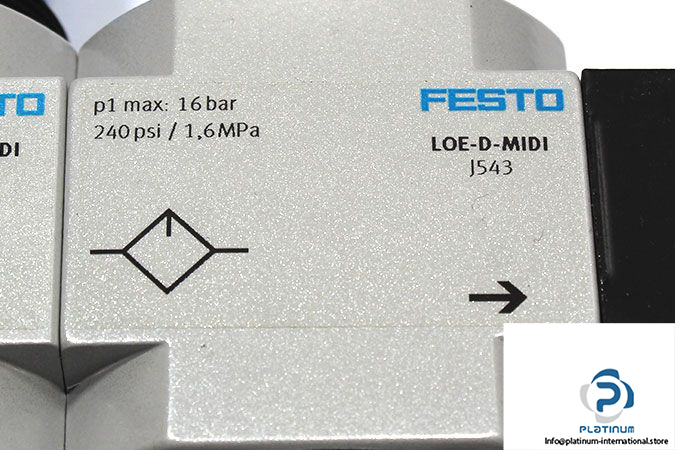

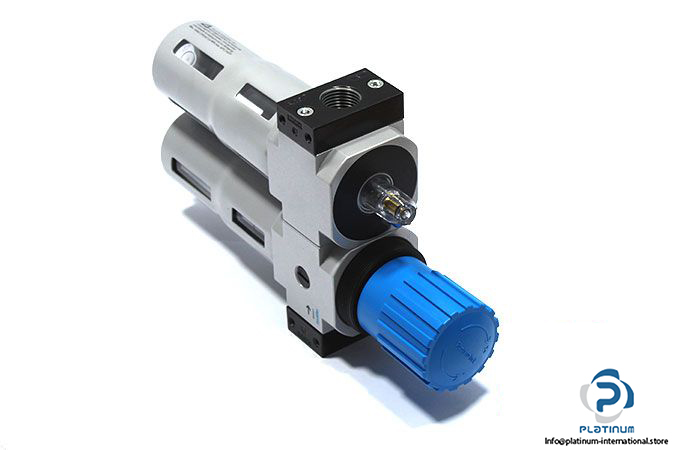

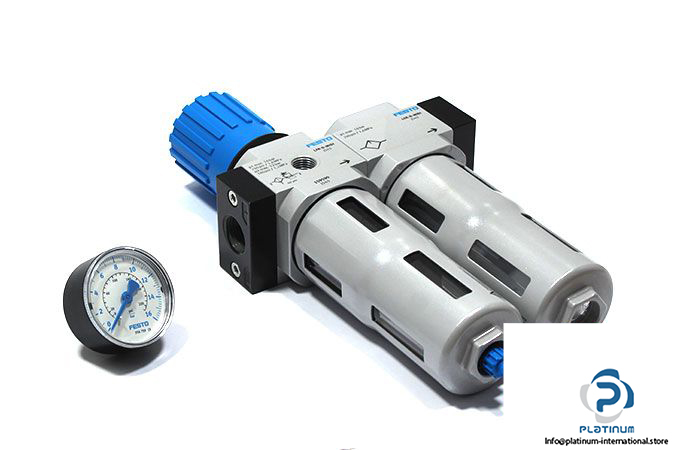

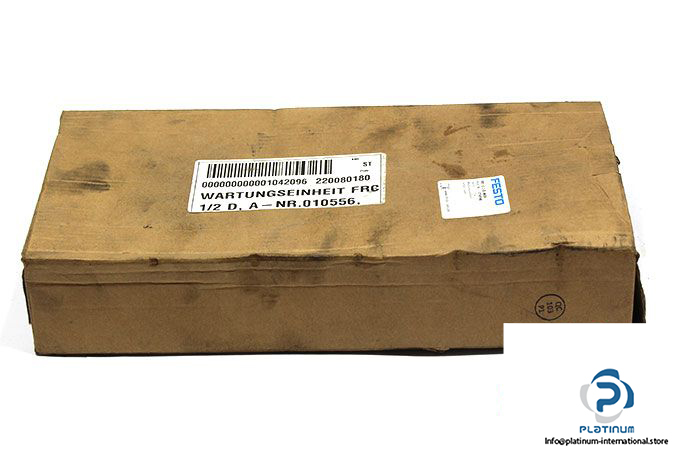

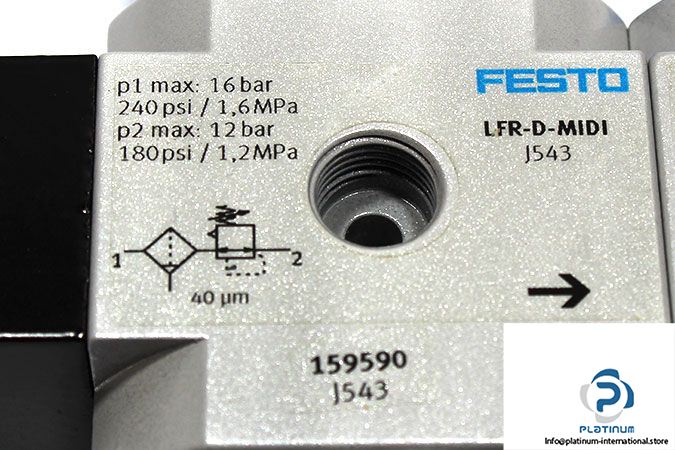

Festo 159590 AIR Preparation Unit

Manufacturer: Festo

Type: Air Preparation Unit

Model: FRC-1/2-D-MIDI

Part No: 159590

Type of Mounting: Line Installation with Accessories

Operating Pressure: 1…16 bar

Pressure Regulation Range: 0.5…12 bar

Max. Pressure Hysteresis: 0.2 bar

Fluid: Air

Pressure Gauge: With Pressure Gauge

Condensate Drain: Manually Rotating

Design: Filter Regulator with Pressure Gauge Proportional Standard Oil Mist Lubricator

Max. Condensate Volume: 43 ml

Grade of Filtration: 40 µm

Flow Rate: 2600 l/min

Pneumatic Connection: G1/2

Ambient Temperature: -10…60 °C

Material: Die-Cast Zinc, PC

Weight: 1.850 kg

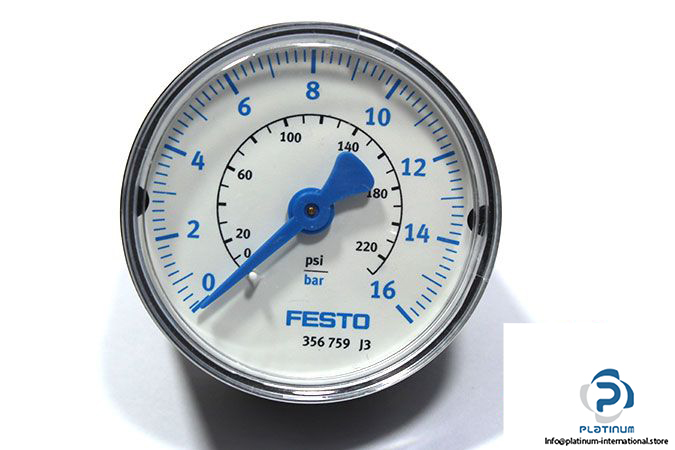

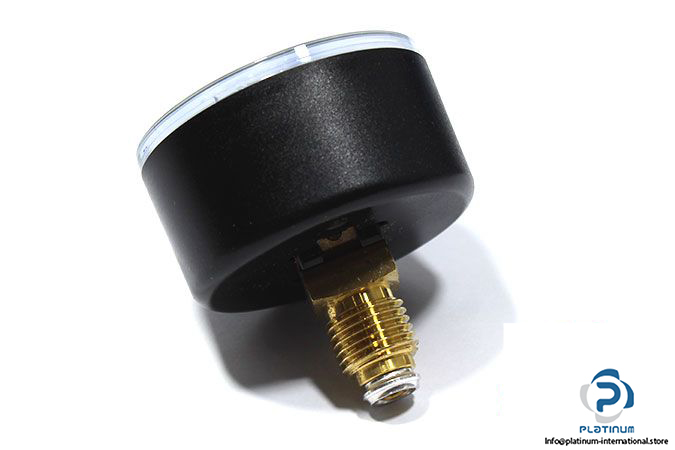

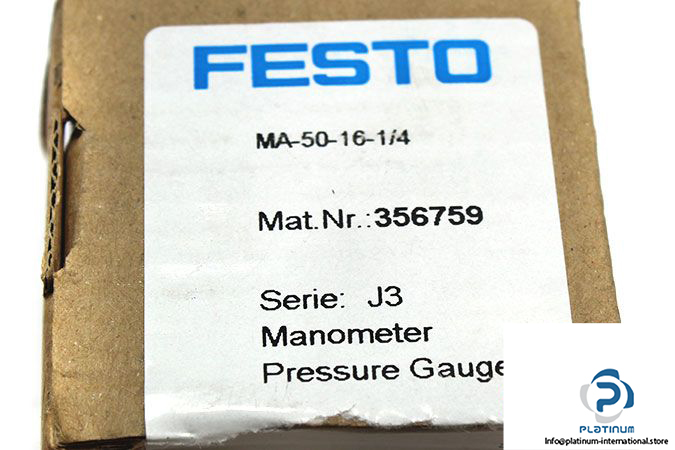

Attachment: FESTO 356759 PRESSURE GAUGE

Manufacturer: Festo

Type: Pressure Gauge

Model: MA-50-16-1/4

Part No.: 356759

Operating Pressure: 0…16 bar

Display Range: 0…16 bar

Pressure Gauge Nominal Size: 50

Design: Bourdon Tube Pressure Gauge

Pneumatic Connection: G1/4

Type of Mounting: Line Installation

Operating Medium: Inert Gas, Neutral Liquids

Ambient Temperature: -20…60 °C

Materials Connection: Brass

Housing Material: ABS

Inspection Window Material: PC

Protection Class: IP43
