Festo 159705 Double Solenoid Pneumatic Valve
Used
Available on request
DOUBLE SOLENOID PNEUMATIC VALVE
FESTO MN1H-5/3G-D-3-C double solenoid valve with 5/3 closed function, pilot control, and high air flow capacity for precision pneumatic systems.5/3AirCompressedDoubleFestoIndustrialIP65MN1H-5/3G-D-3-CPilot-ControlledPneumaticPneumaticssolenoidSystemValveWay
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

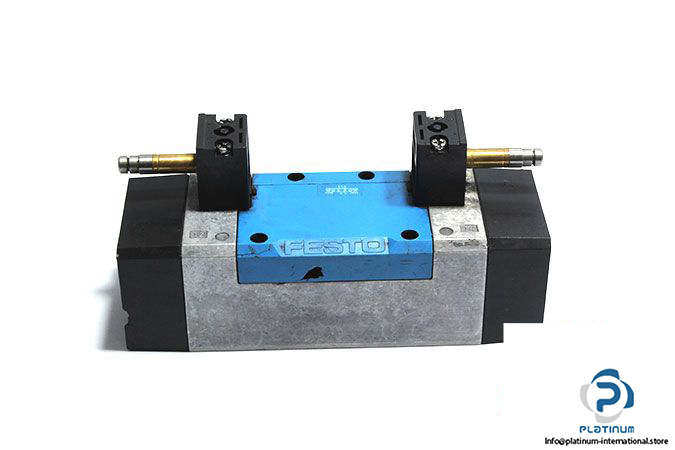

FESTO MN1H-5/3G-D-3-C DOUBLE SOLENOID PNEUMATIC VALVE
The FESTO MN1H-5/3G-D-3-C is a high-performance double solenoid valve engineered for precise control of compressed air systems. With a 5/3 closed center function and pilot control, this unit provides reliable operation across demanding industrial applications.
Manufacturer: FESTO
Type: Double Solenoid Pneumatic Valve

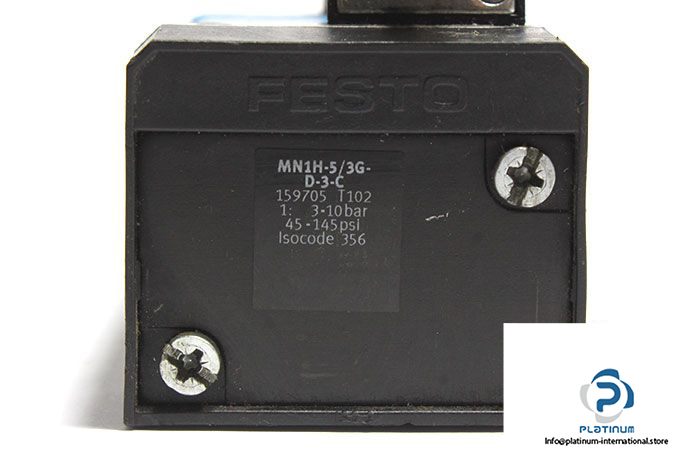

Model: MN1H-5/3G-D-3-C
Part No.: 159705
| Fluid | Compressed Air |

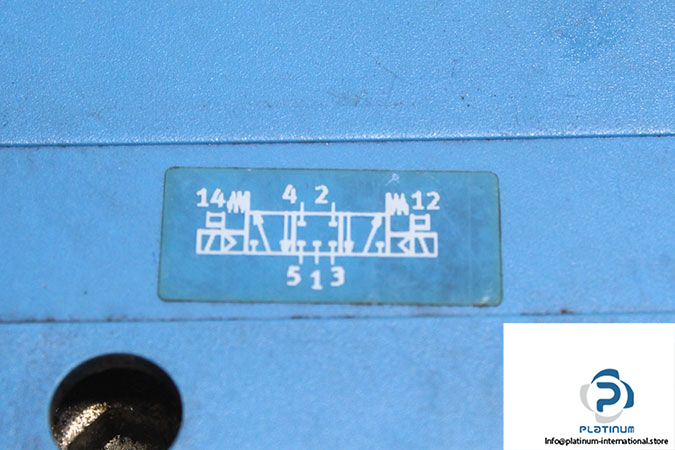

| Function | 5/3 Way Valve, Closed |
| Type of Actuation | Electrically |
| Type of Control | Pilot-Controlled |
| Operating Pressure | 3 / 10 bar |
| Nominal Flow Rate | 4100 l/min |
| Bore Diameter | 8.8 mm |
| Seals Material | HNBR, NBR |
| Housing Material | Die-cast Aluminum |
| Pneumatic Connection | Sub-Based |
| Protection Class | IP65 |
| Temperature of Medium | -5 / 50 °C |
