Festo 161424 32X80 Round Cylinder
Used
Available on request
Round Cylinder
The Festo DSW-32-80PB is a double-acting round cylinder with 80 mm stroke length and 32 mm piston diameter. Built with high-alloy steel and aluminum alloy, it ensures durability and performance in pneumatic automation systems.32mm80mmActingAlloyAutomationCylinderDoubleDSW-32-80PBFestoHighIndustrialPistonPneumaticPneumaticsRoundSteelStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

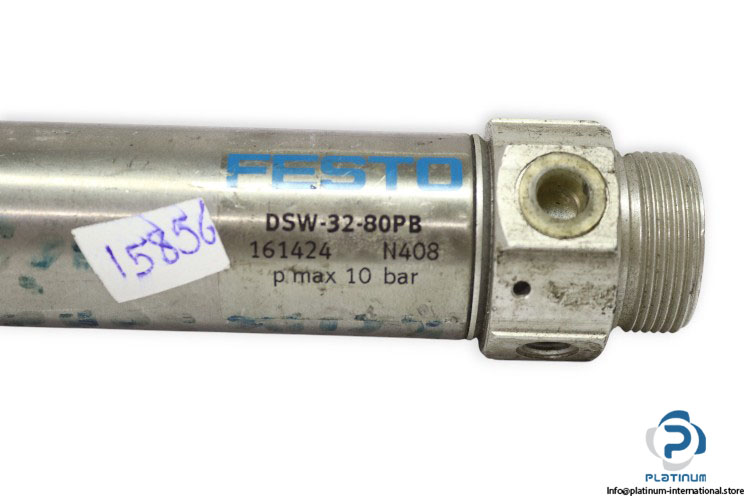

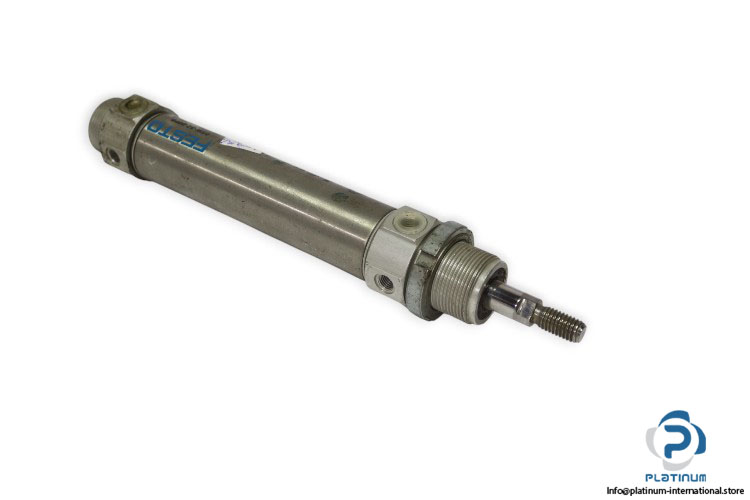

Festo DSW-32-80PB Round Cylinder
The Festo DSW-32-80PB is a precision-engineered round cylinder from the DSW series, designed for reliable pneumatic motion control in industrial automation. With a robust construction and high-alloy steel components, it delivers durability, efficiency, and consistent performance under demanding operating conditions.
Manufacturer: Festo
Type: Round Cylinder
Model: DSW-32-80PB
Part No.: 161424
Ref. code: N408
Series: DSW
| Stroke Length | 80 mm |
| Piston Diameter | 32 mm |
| Piston Rod Thread | 12 mm |
| Pneumatic Connection | G1/8 |
| Cushioning | Flexible cushioning rings or plates at both ends (P) |
| Operating Medium | Dried compressed air |
| Max. Operating Pressure | 10 bar |
| Shape | Circular |
| Variants | Single-ended piston rod |
| Piston Action | Double-acting |
| Material Cover | Wrought aluminum alloy |
| Material Seals | TPE-U(PU), NBR |
| Material Piston Rod | High-alloy steel |
| Material Cylinder Barrel | High-alloy steel |
| Ambient Temperature | -20 to 80 °C |
