Festo 161425 32X100 Round Cylinder
Used
In stock1 unitReady to ship
Round Cylinder
Festo DSW-32-100-P-B pneumatic round cylinder with 100 mm stroke and 32 mm piston diameter. Double-acting, single-ended piston rod, and flexible cushioning for reliable automation performance.16142532ActingActuatorAutomationCylinderDoubleDSW-32-100-P-BFestoG1/8IndustrialmmPistonPneumaticR608Round
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

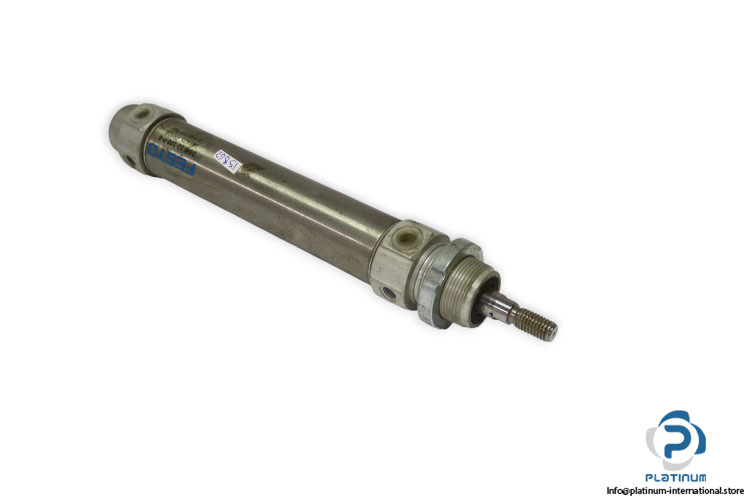

Festo DSW-32-100-P-B Round Cylinder
The Festo DSW-32-100-P-B is a high-performance pneumatic round cylinder from the DSW series, engineered for precise linear motion in industrial automation. With a robust design, double-acting piston action, and flexible cushioning, it ensures reliable operation under demanding conditions.
Manufacturer: Festo
Type: Round Cylinder

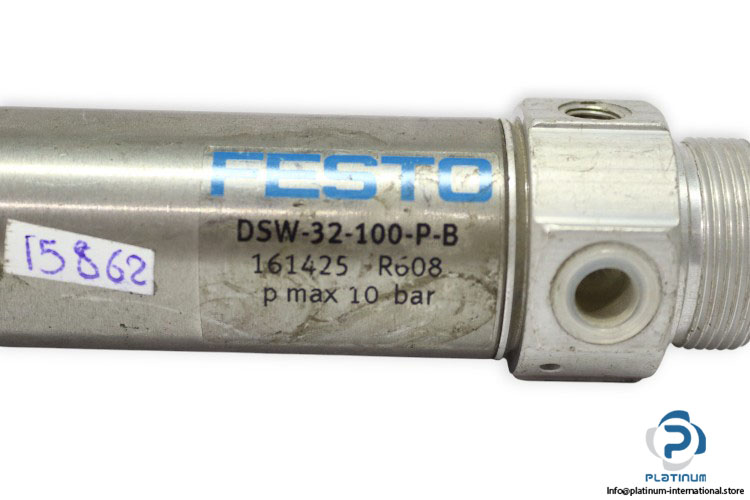

Model: DSW-32-100-P-B
Series: DSW
Part No.: 161425
Ref. Code: R608
| Stroke Length | 100 mm |
| Piston Diameter | 32 mm |
| Rod Diameter | 12 mm |
| Pneumatic Connection | G1/8 |
| Cushioning | Flexible cushioning rings or plates at both ends (P) |
| Operating Medium | Compressed Air |
| Max. Operating Pressure | 10 bar |
| Shape | Circular |
| Piston Action | Double-acting |
| Variants | Single-ended piston rod |
| Temperature Range | -20 to 80°C |
