Festo 161454 32X80 Round Cylinder
Used
Available on request
Round Cylinder
Festo DSW-32-80PPVAB pneumatic cylinder with 80 mm stroke and 32 mm piston diameter. Double-acting design with G1/8 connection, 10 bar max pressure, and robust high-alloy steel construction for industrial automation.32mm80mmActingAutomationconnectionCylinderDoubleDSW-32-80PPVABFestoG1/8HighIndustrialPistonPneumaticPressureRoundStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

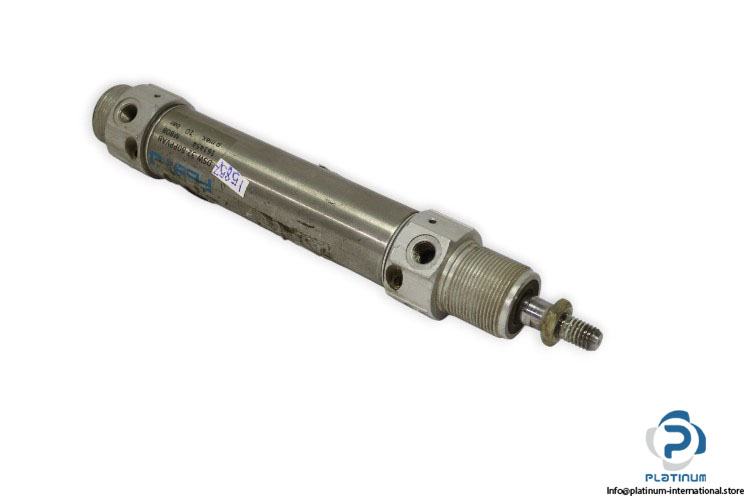

Festo DSW-32-80PPVAB Round Cylinder
The Festo DSW-32-80PPVAB Round Cylinder is designed for reliable performance in pneumatic automation systems. With a robust construction, flexible cushioning, and precision stroke design, it ensures high efficiency and durability across demanding industrial environments.
Manufacturer: Festo
Type: Round Cylinder

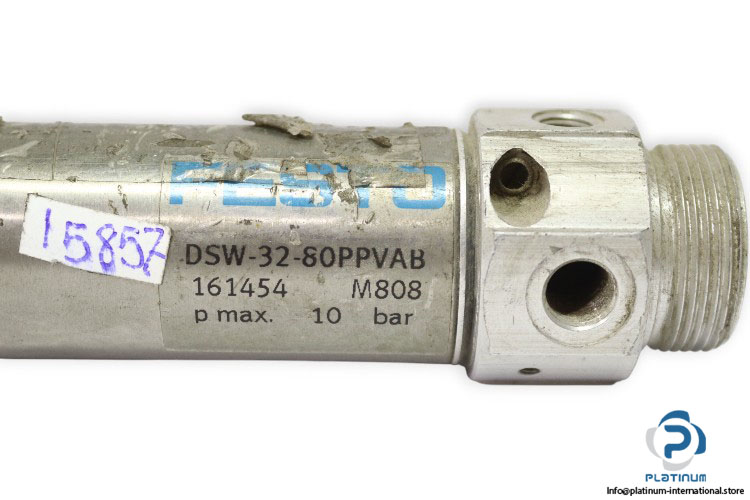

Model: DSW-32-80PPVAB / DSW-32-80-PPV-A-B
Part No.: 161454
Ref. Code: M808
Series: DSW
| Stroke Length | 80 mm |
| Piston Diameter | 32 mm |
| Piston Rod Thread | 12 mm |
| Pneumatic Connection | G1/8 |
| Cushioning | Flexible cushioning rings or plates at both ends (P) |
| Operating Medium | Dried compressed air |
| Max. Operating Pressure | 10 bar |
| Shape | Circular |
| Variants | Single-ended piston rod |
| Piston Action | Double-acting |
| Material Cover | Wrought aluminum alloy |
| Material Seals | TPE-U(PU), NBR |
| Material Piston Rod | High-alloy steel |
| Material Cylinder Barrel | High-alloy steel |
| Ambient Temperature | -20 to 80 °C |
