Festo 161519 Round Cylinder
Used
In stock1 unitReady to ship
ROUND CYLINDER
The Festo DSW-50-50PB pneumatic cylinder features a 50 mm stroke and high durability, ideal for double-acting automation tasks.1/450mmActingActuatorAirAutomationCompressedCylinderDoubleDSW-50-50PBFestoGIndustrialNBRPneumaticRoundSealsStrokeTPE-U(P)
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

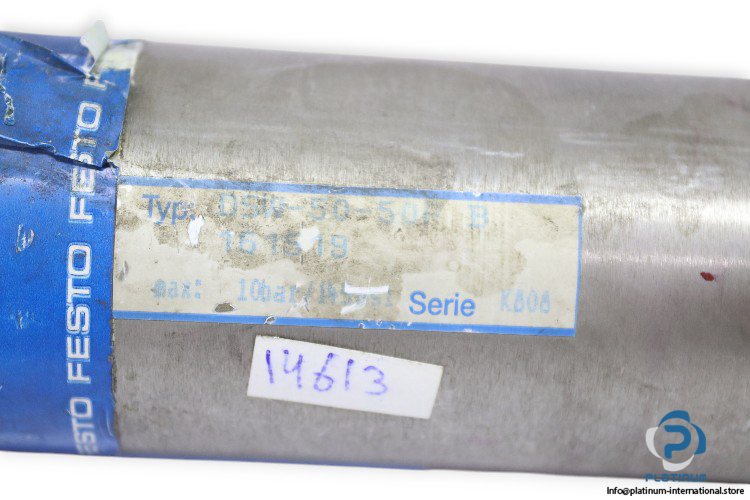

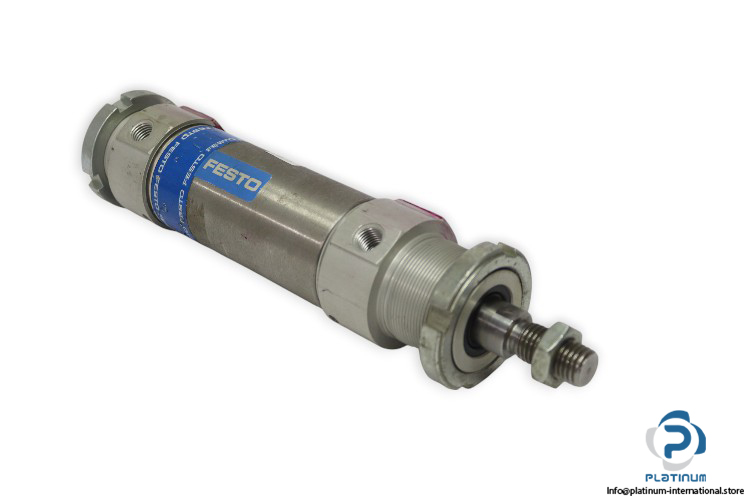

FESTO DSW-50-50PB ROUND CYLINDER
The Festo DSW-50-50PB is a robust and efficient pneumatic cylinder designed for high-performance industrial automation systems.
Manufacturer: Festo
Type: Round Cylinder
Model: DSW-50-50PB
Part No.: 161519
Series: K808
| Piston Diameter | 50 mm |
| Stroke | 50 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 10 bars |
| Operating Medium | Compressed Air |
| Piston Rod End | Male |
| Damping | Elastic Damping Rings/Plates on Both Sides (P) |
| Operation | Double Acting |
| Shape | Circular |
| Ambient Temperature | -20 to 80 °C |
| Materials - Cover | Wrought Aluminum Alloy |
| Materials - Seals | NBR, TPE-U(P) |
