Festo 161538 Round Cylinder
Used
In stock3 unitsReady to ship
ROUND CYLINDER
Festo DSW-50-40-PPV-B is a high-performance round cylinder with a 50 mm piston diameter and 40 mm stroke, ideal for double-acting pneumatic systems.1/450ActingAirAutomationCompressedconnectionCylinderDoubleDSW-50-40-PPV-BFestoGIndustrialmmPistonPneumaticPneumaticsRound
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

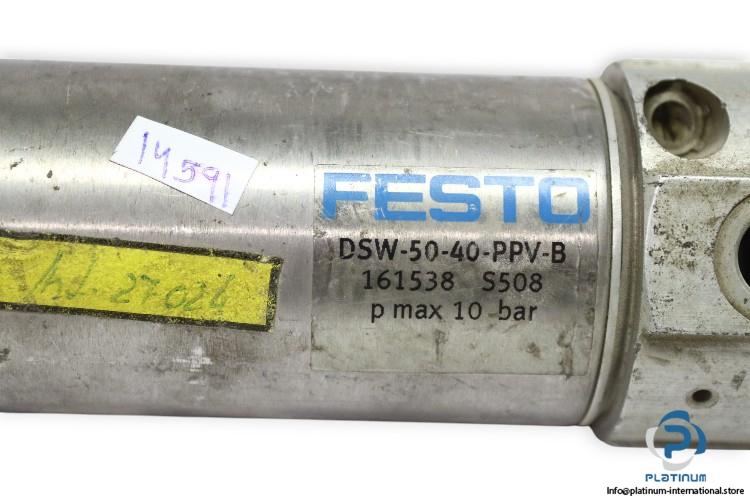

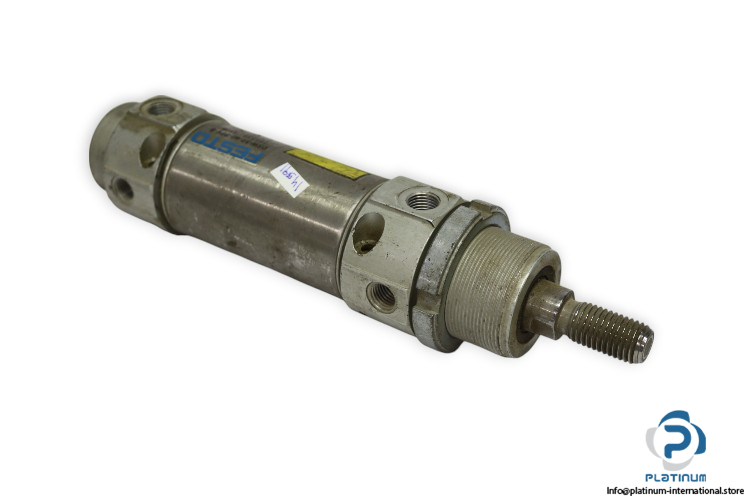

FESTO DSW-50-40-PPV-B ROUND CYLINDER
The FESTO DSW-50-40-PPV-B is a precision-engineered double-acting pneumatic cylinder designed for industrial automation tasks requiring consistent performance under pressure.
Manufacturer: Festo
Type: Round Cylinder
Model: DSW-50-40-PPV-B
Part No.: 161538
Ref. Code: S508
| Piston Diameter | 50 mm |
| Stroke | 40 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 10 bar |
| Operating Medium | Compressed air |
| Piston Rod End | Male |
| Variants | Single-ended piston rod |
| Operation | Double acting |
| Shape | Circular |
| Rod Direction | One side |
| Ambient Temperature | -20 to 80 °C |
| Materials (Cover) | Wrought Aluminum Alloy |
| Materials (Seals) | TPE-U(P) |
