Festo 161880 AIR Solenoid Valve
Used
In stock1 unitReady to ship
AIR SOLENOID VALVE
FESTO MN2H-5/2-D-01-110AC valve with 5/2 single solenoid and die-cast aluminum body, paired with MSEB-3-110V AC coil for reliable pneumatic actuation.1204215/2ACAirAluminumCastcoilControlDieFestoIndustrialMN2H-5/2-D-01-110ACMSEB-3-110VPneumaticPneumaticsSinglesolenoidValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

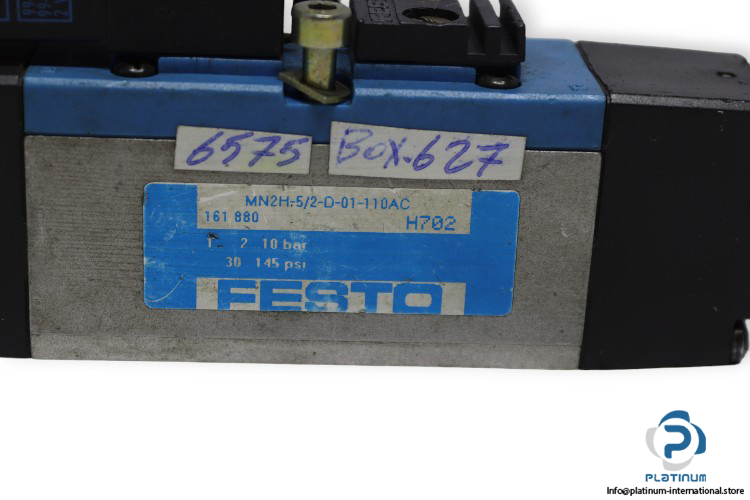

FESTO MN2H-5/2-D-01-110AC AIR SOLENOID VALVE WITH MSEB-3-110V AC COIL
The FESTO MN2H-5/2-D-01-110AC is a high-performance air solenoid valve engineered for precision pneumatic control. With a piston slide design and 5/2 single solenoid function, it ensures reliable switching and efficient airflow in industrial systems. Comes equipped with FESTO MSEB-3-110V AC coil for seamless actuation.
Manufacturer: FESTO
Type: Air Solenoid Valve
Model: MN2H-5/2-D-01-110AC
Part No.: 161880
Coil Technical Information
| Fluid | Air |
| Design | Piston slide |

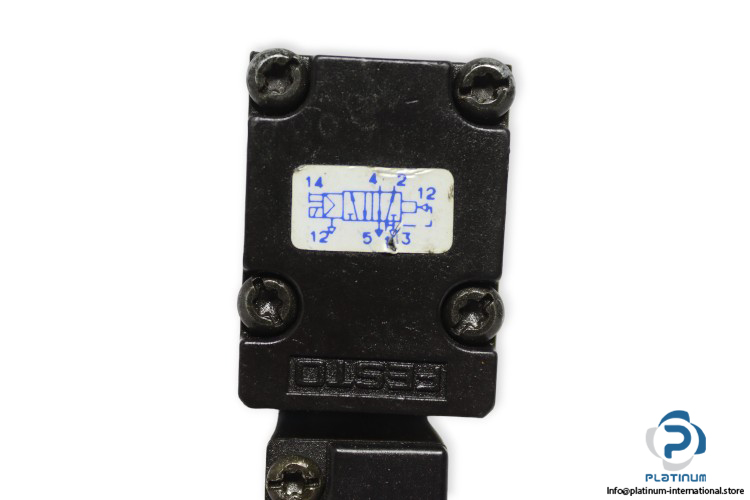

| Valve Function | 5/2 Single Solenoid |
| Type of Actuation | Electrically |
| Operating Pressure | 2 ... 10 bar |
| Nominal Flow Rate | 1000 l/min |
| Pneumatic Connection | Connection plate size 26 mm |
| Material | Die-cast aluminum |
| Ambient Temperature | -10 / 50 °C |

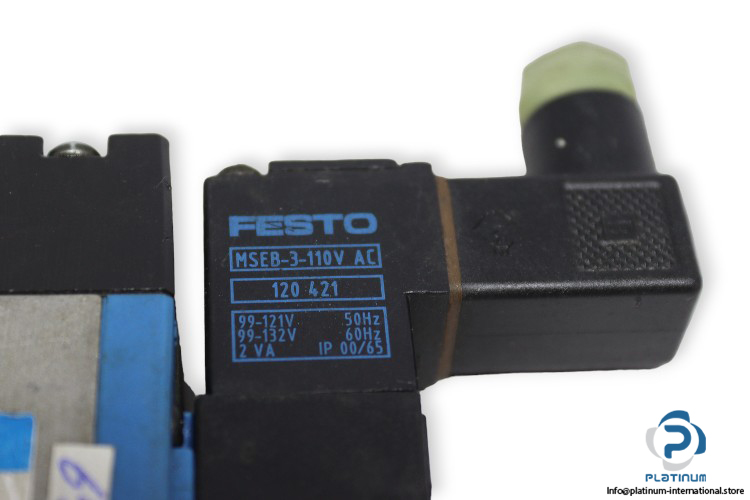

| Solenoid Coil Attachment | FESTO 120421 |
| Part No. | 120421 |
| Supply Voltage | 99 ... 121 V AC 50 Hz / 99 ... 132 V AC 60 Hz |
| Power Consumption | 2 VA |
| Protection Class | IP00 / IP65 |
