Festo 162207 Sdouble Solenoid Valve
New
In stock1 unitReady to ship
DOUBLE SOLENOID VALVE
FESTO CPE14-M1H-5-JS-1/8 5/2-way double solenoid valve for compressed air applications, supplied with MSZD-3-24DC coil and G1/8 threaded ports.5/2AircoilControlCPE14-M1H-5-JS-1/8DoubleElectricalFestoG1/8IndustrialMSZD-3-24DCPneumaticPortsolenoidValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

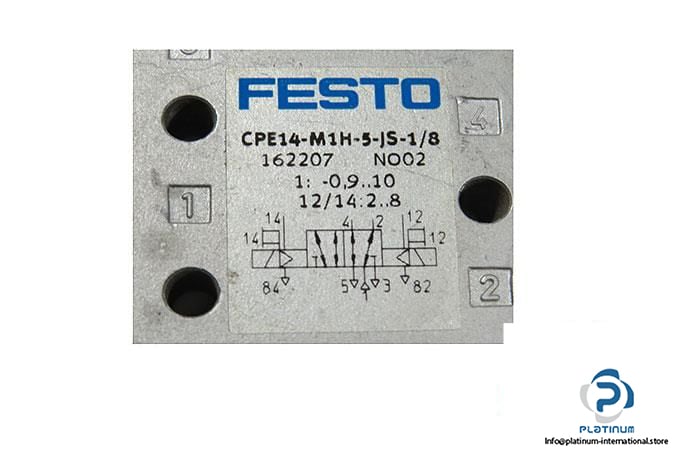

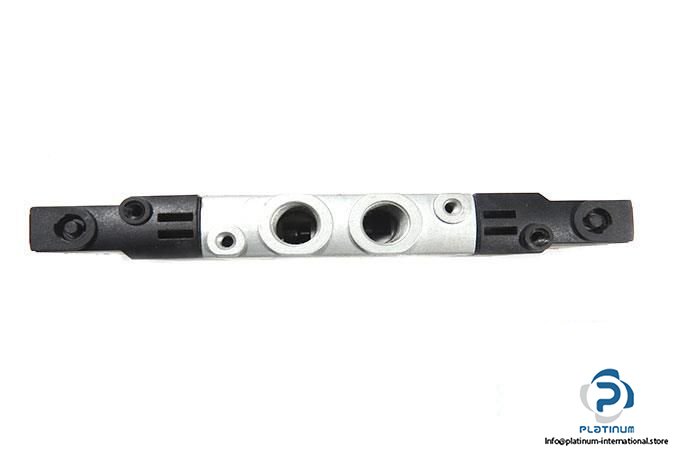

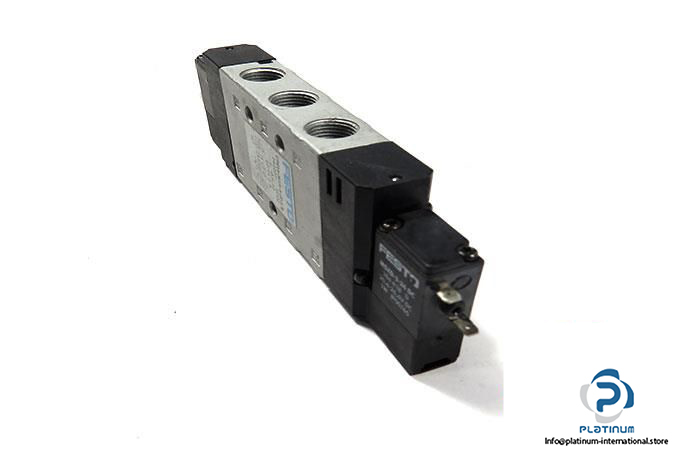

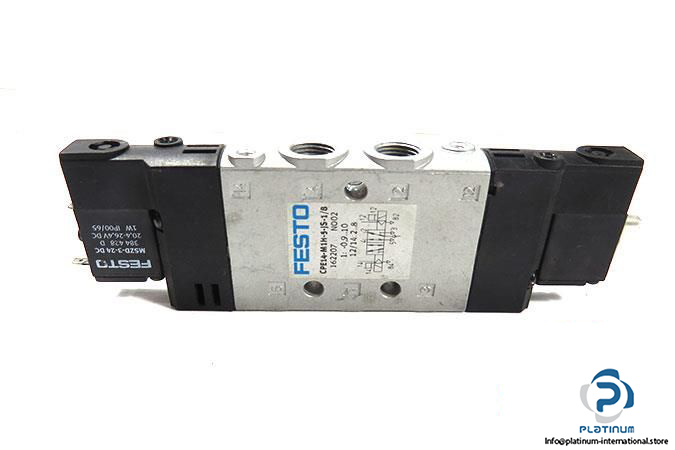

FESTO CPE14-M1H-5-JS-1/8 DOUBLE SOLENOID VALVE WITH MSZD-3-24 DC COIL
The FESTO CPE14-M1H-5-JS-1/8 is a high-performance 5/2-way double solenoid valve engineered for precise control of compressed air. This valve is electrically actuated and includes the FESTO MSZD-3-24DC solenoid coil for efficient switching in industrial automation systems.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: CPE14-M1H-5-JS-1/8
Part No.: 162207
Coil Technical Information
| Fluid | Compressed Air |
| Function | 5/2-way valve |
| Type of Actuation | Electrical |
| Operating Pressure | 3 to 8 bar |
| Standard Nominal Flow Rate | 180 l/min |
| Pneumatic Connection | G1/8 Female Thread |
| Ambient Temperature | -10 to 50 °C |
| Solenoid Coil Attachment | FESTO MSZD-3-24DC |
| Part No. | 384428 D |
| Supply Voltage | 20.4 to 26.4 V DC |
| Power Consumption | 1 W |
| Protection Class | IP00 / IP65 |
