Festo 163146 AIR Solenoid Valve
New
In stock1 unitReady to ship
SINGLE SOLENOID VALVE
FESTO CPE18-M1H-5LS-1/4 single solenoid valve with MSEB-3-24V DC coil provides 5/2-way control, high flow rate, and robust die-cast aluminum design.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

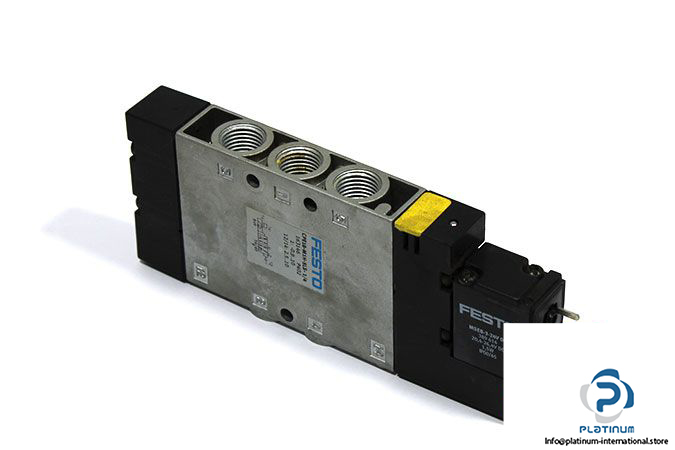

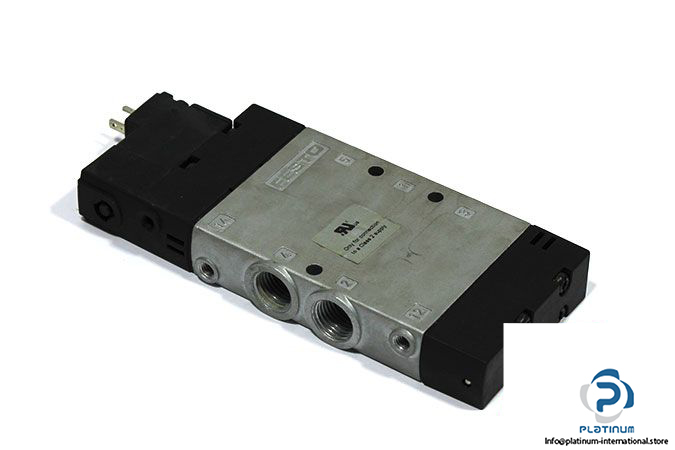

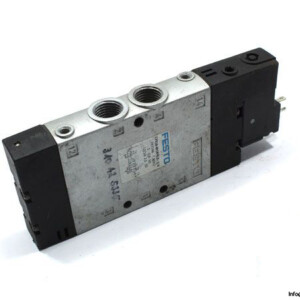

FESTO CPE18-M1H-5LS-1/4 SINGLE SOLENOID VALVE WITH COIL
The FESTO CPE18-M1H-5LS-1/4 is a high-performance single solenoid valve engineered for precise and efficient pneumatic control. Designed as a 5/2-way monostable valve, it operates electrically with reliable flow output and robust construction, making it suitable for demanding industrial environments.
Manufacturer: FESTO
Type: Single Solenoid Valve

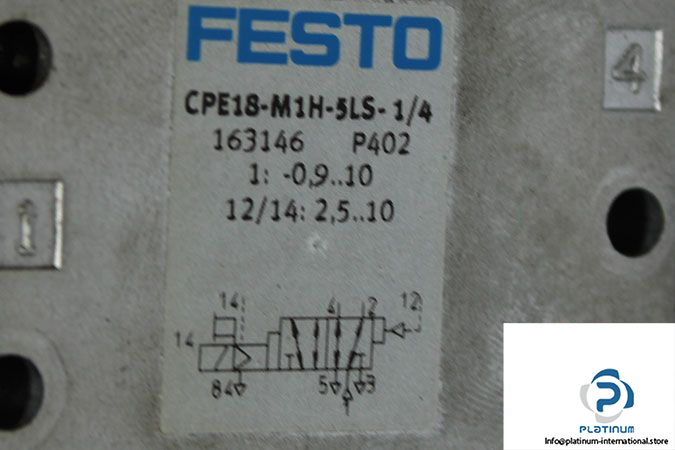

Model: CPE18-M1H-5LS-1/4
Part No.: 163146
Solenoid Coil Technical Information
| Fluid | Air |
| Design | Piston gate valve |
| Function | 5/2-way, monostable |
| Type of Actuation | Electrically |
| Operating Pressure | -0.9 / 10 bar |
| Nominal Flow Rate | 1500 l/min |
| Pneumatic Connection | G1/4 |
| Material | Die-cast aluminum |
| Ambient Temperature | -5 / 50 °C |

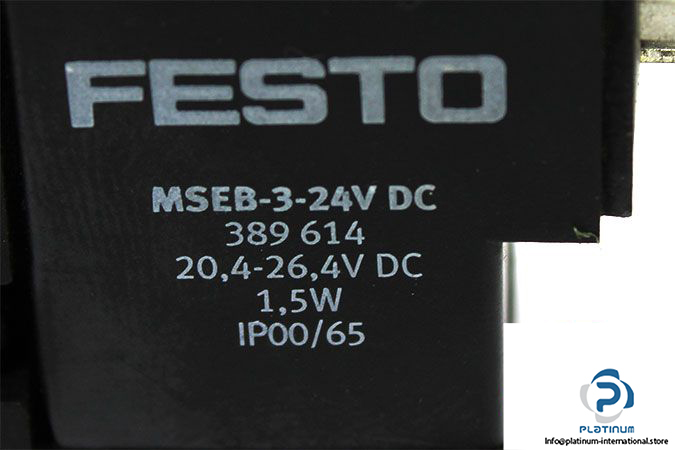

| Solenoid Coil Attachment | FESTO MSEB-3-24V DC |
| Part No. | 389614 D |
| Supply Voltage | 20.4 / 26.4 V DC |
| Power Consumption | 1.5 W |
| Protection Class | IP00 / IP65 |
