Festo 163150 Single Solenoid Valve
Used
In stock1 unitReady to ship
50,00$
SINGLE SOLENOID VALVE
FESTO CPE18-M1H-5L-QS-8 single solenoid valve with 5/2-way function and MSEB-3-24 V DC coil for reliable pneumatic control in industrial systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

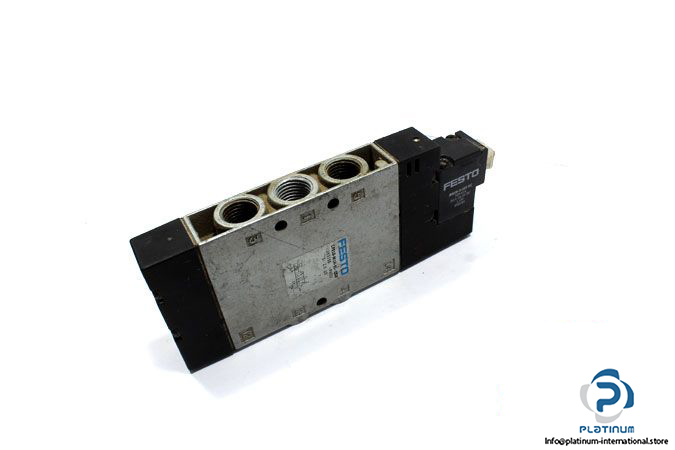

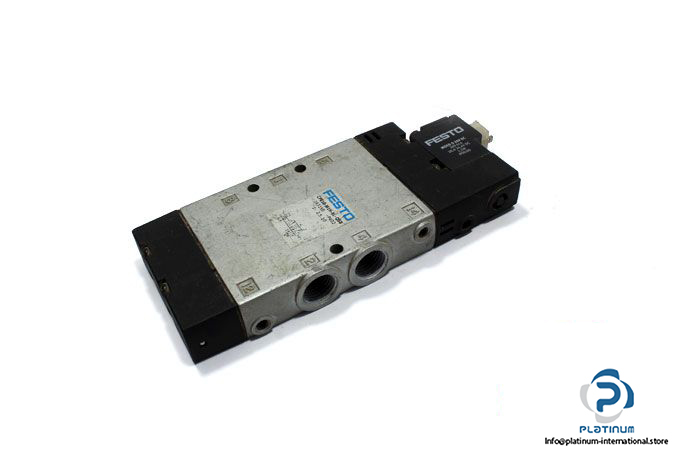

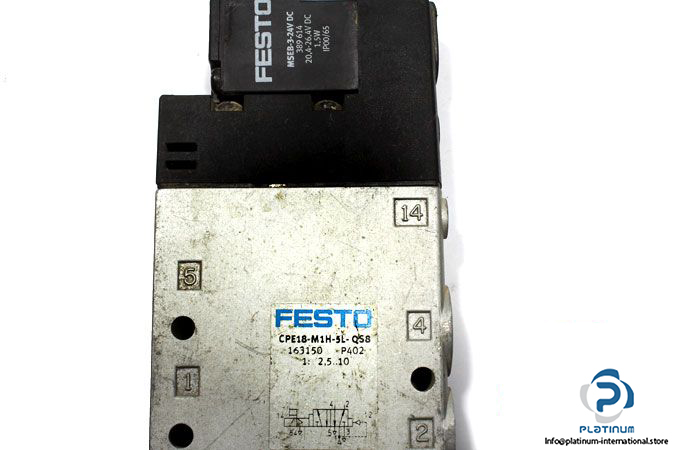

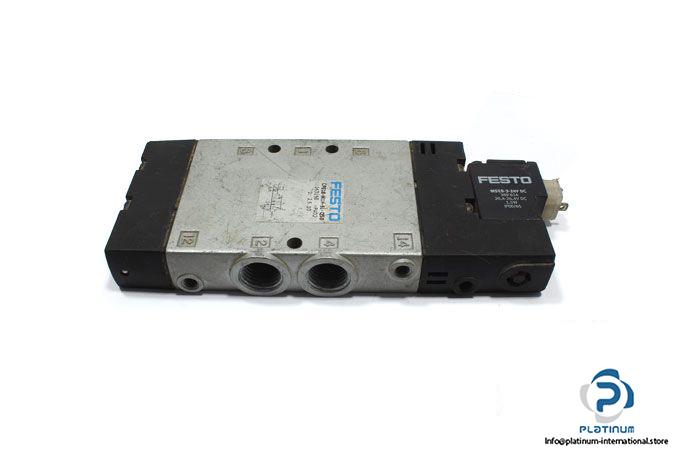

FESTO CPE18-M1H-5L-QS-8 SINGLE SOLENOID VALVE WITH COIL
The FESTO CPE18-M1H-5L-QS-8 is a high-performance single solenoid valve designed for precise pneumatic applications. Featuring a 5/2-way monostable function and robust die-cast aluminum body, it ensures durability and efficiency. It is equipped with a FESTO MSEB-3-24 V DC coil for reliable actuation and control.
Manufacturer: FESTO
Type: Single Solenoid Valve
Model: CPE18-M1H-5L-QS-8
Part No.: 163150
| Fluid | Air |
| Design | Piston gate valve |
| Function | 5/2-way, monostable |
| Type of Actuation | Electrically |
| Operating Pressure | 2.5 / 10 bar |
| Nominal Flow Rate | 850 l/min |
| Pneumatic Connection | QS-8 |
| Material | Die-cast aluminum |
| Ambient Temperature | -5 / 50 °C |
| Attachment | FESTO MSEB-3-24 V DC SOLENOID COIL |
| Part No. | 389614 |
| Supply Voltage | 20.4 ... 26.4 V DC |
| Power Consumption | 1.5 W |
| Protection Class | IP00 / IP65 |
