Festo 163165 Single Solenoid Valve
Used
In stock3 unitsReady to ship
45,00$
SINGLE SOLENOID VALVE
FESTO CPE24-M1H-3GL-3/8 valve with MSEB-3-24V DC coil features 3/2-way monostable function, piston design, and high flow for pneumatic control.3/2-wayAluminumcoilControlCPE24-M1H-3GL-3/8dcdie-castFestoIndustrialMSEB-3-24VPneumaticSinglesolenoidValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

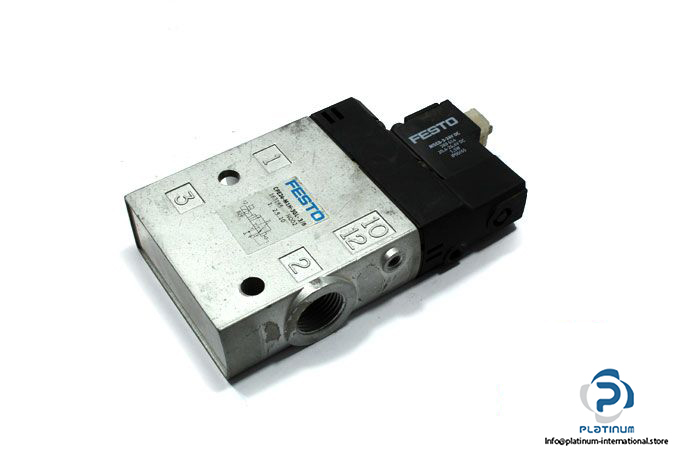

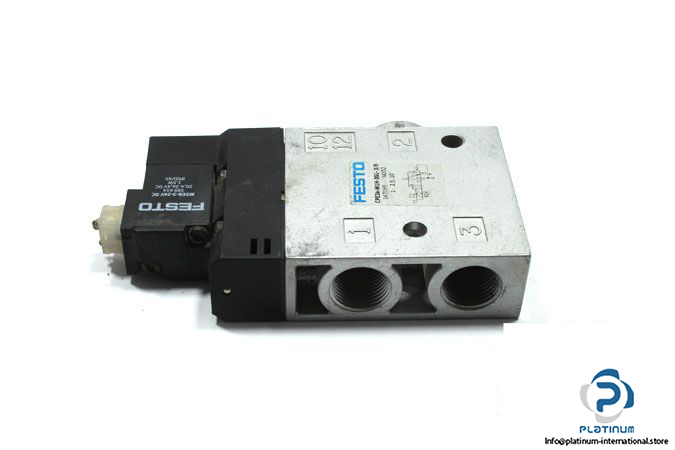

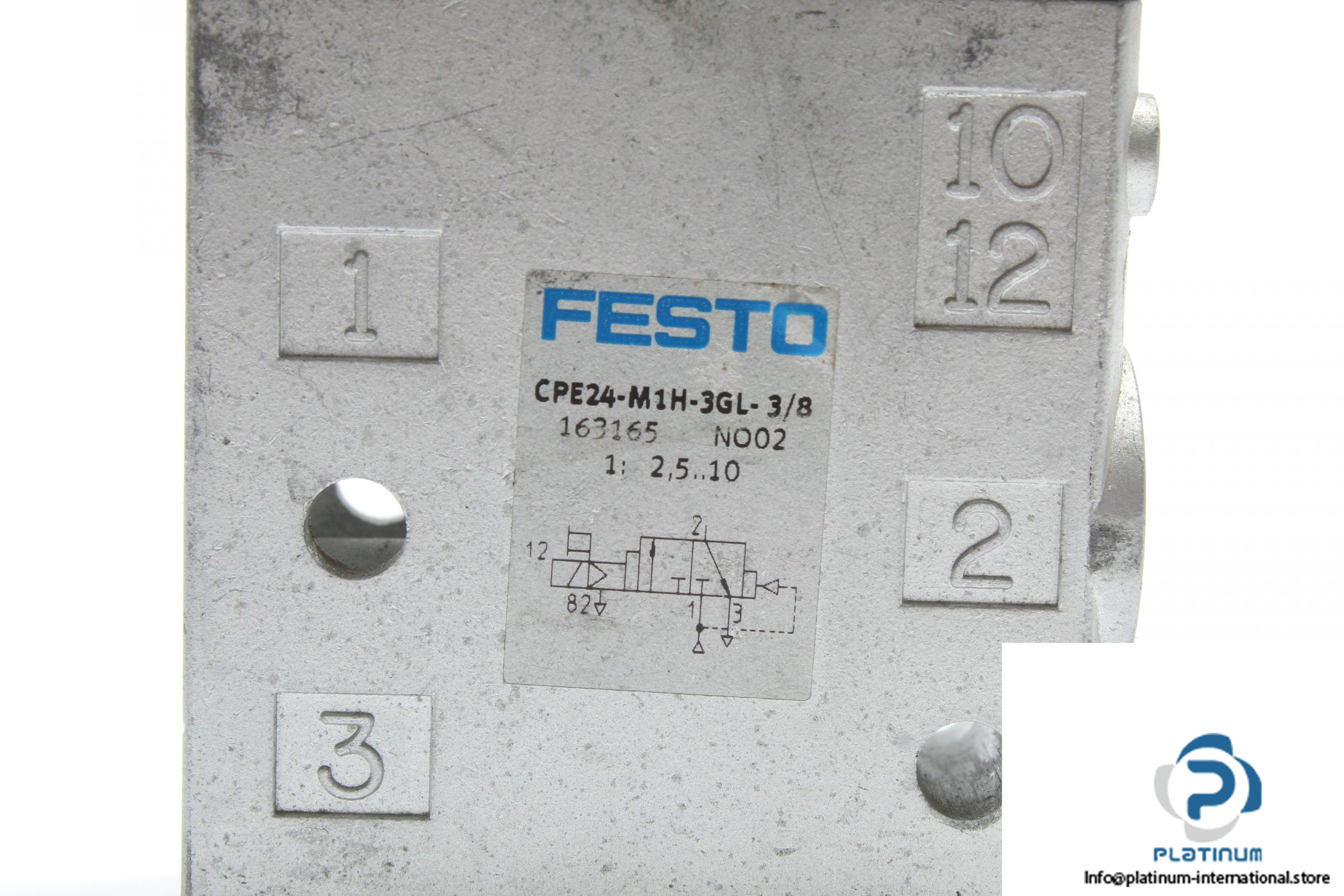

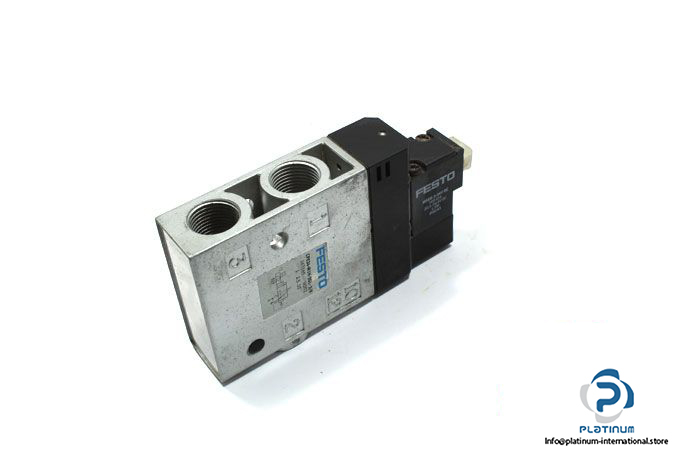

FESTO CPE24-M1H-3GL-3/8 SINGLE SOLENOID VALVE WITH COIL
The FESTO CPE24-M1H-3GL-3/8 is a robust single solenoid valve engineered for high-performance pneumatic control. Featuring a 3/2-way, closed, monostable design and piston gate valve construction, it ensures precise and reliable switching operations. Supplied with the FESTO MSEB-3-24V DC solenoid coil, this assembly offers efficient actuation in demanding industrial environments.
Manufacturer: FESTO
Type: Single Solenoid Valve
Model: CPE24-M1H-3GL-3/8
Part No.: 163165
Coil Technical Information
| Fluid | Air |
| Design | Piston gate valve |
| Function | 3/2-way, closed, monostable |
| Type of Actuation | Electrically |
| Operating Pressure | 2.5 ... 10 bar |
| Nominal Flow Rate | 2500 l/min |
| Pneumatic Connection | G3/8 |
| Material | Die-cast aluminum |
| Ambient Temperature | -5 / 50 °C |

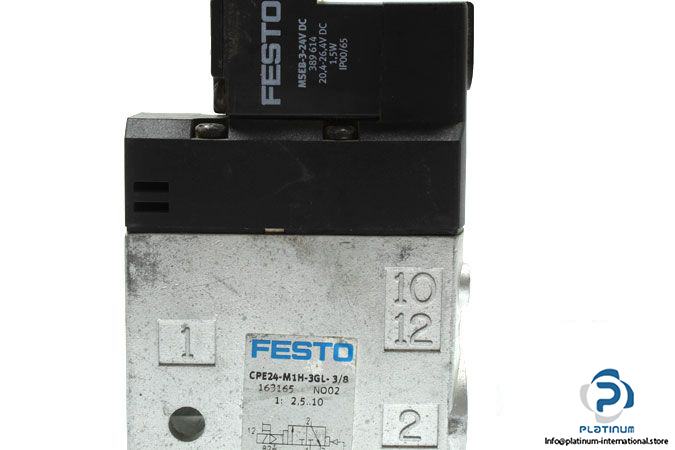

| Attachment | FESTO MSEB-3-24V DC SOLENOID COIL |
| Part No. | 389614 D |
| Supply Voltage | 20.4 ... 26.4 V DC |
| Power Consumption | 1.5 W |
| Protection Class | IP00 / IP65 |
