Festo 163329 ISO Cylinder
New
In stock3 unitsReady to ship
ISO CYLINDER
Festo DNC-32-400-PPV is a square-profile ISO cylinder with 32 mm bore, 400 mm stroke, and a robust aluminum body for high-performance pneumatic tasks.32mm400mmActuatorAirAluminumAutomationboreCompressedCylinderDNC-32-400-PPVFestoHighIndustrialISOPneumaticPneumaticsPressureProfileSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

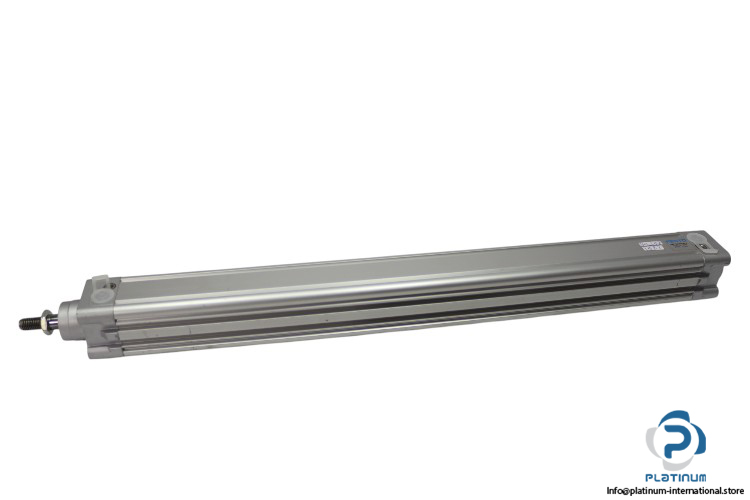

FESTO DNC-32-400-PPV ISO CYLINDER
The Festo DNC-32-400-PPV ISO cylinder delivers robust pneumatic performance for industrial automation applications, featuring a long stroke, high pressure capacity, and durable materials.
Manufacturer: Festo
Type: ISO Cylinder

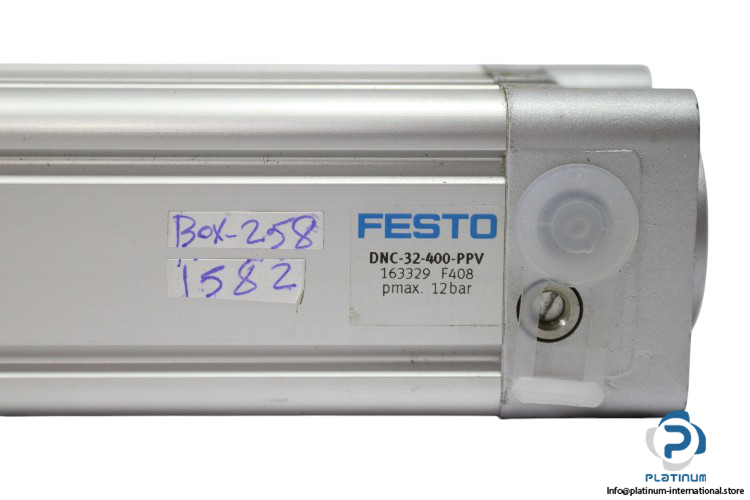

Model: DNC-32-400-PPV
Part No.: 163329
Ref. Code: F408
Series: DNC
Material Composition
| Media | Compressed Air |
| Bore Diameter | 32 mm |
| Stroke | 400 mm |
| Bore x Stroke | 32 x 400 mm |
| Rod Diameter | 12 mm |
| Frame Dimensions | 45 x 500 mm |
| Pneumatic Connection | G 1/8 |
| Pressure Max. | 12 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
| Ambient Temperature Range | -20 to +80°C |
| Cover | Die-cast Aluminum |
| Seals | TPE-U(PU) |
| Piston Rod | High-alloy Steel |
| Cylinder Barrel | Wrought Aluminum Alloy, Smooth Anodized |
