Festo 163443 ISO Cylinder

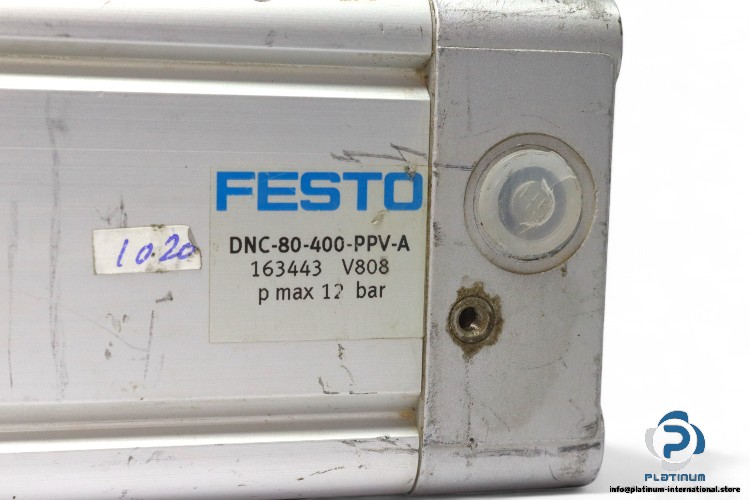

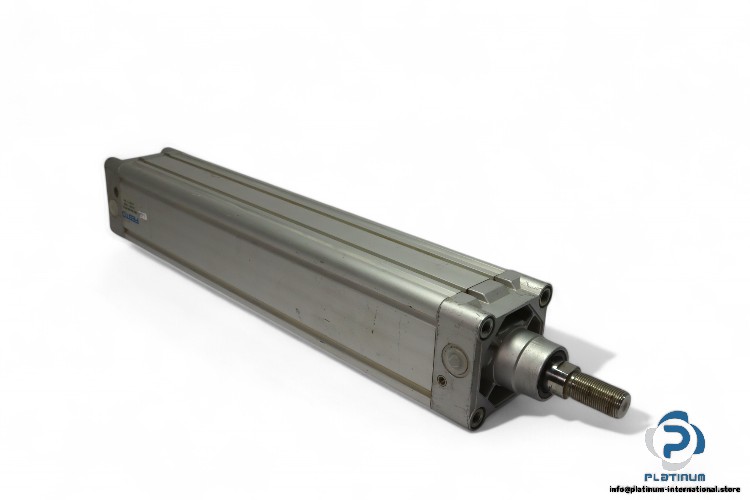

Festo ISO Cylinder DNC-80-400-PPV-A

Manufacturer: Festo

Type: ISO cylinder

Model: DNC-80-400-PPV-A

Part No.: 163443

The Festo DNC-80-400-PPV-A ISO cylinder is engineered for high-performance pneumatic applications. Its adjustable pneumatic cushioning at both ends ensures smooth operation, while the double-acting mode of operation provides reliable force in both extending and retracting directions. This robust cylinder design is ideal for demanding industrial environments.

Technical Specifications:

• Stroke Length: 400 mm
• Piston Diameter: 80 mm
• Fluid: Air
• Piston-Rod End: Male thread
• Cushioning: Pneumatic cushioning, adjustable at both ends
• Variants: Piston rod at one end
• Max. Operating Pressure: 12 bar
• Mode of Operation: Double acting
• Pneumatic Connection: G3/8
• Ambient Temperature: -20 °C … 80 °C

With its rugged construction and precise pneumatic control, the DNC-80-400-PPV-A stands out as a versatile option for various industrial applications, delivering dependable performance over an extended service life.
