Festo 165092 25X15 Compact Cylinder
Used
In stock1 unitReady to ship
COMPACT CYLINDER
The Festo ADVUL-25-15-PA-S2 is a double-acting compact cylinder built for precision motion control in tight spaces. It features durable materials, a 25 mm piston, and 15 mm stroke for reliable pneumatic performance.1525ActingActuatorADVUL-25-15-PA-S2AirAluminumAutomationBodyCompactCompressedCylinderDoubleFestoIndustrialKDmmNBRPistonPneumaticPneumaticsSealedStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

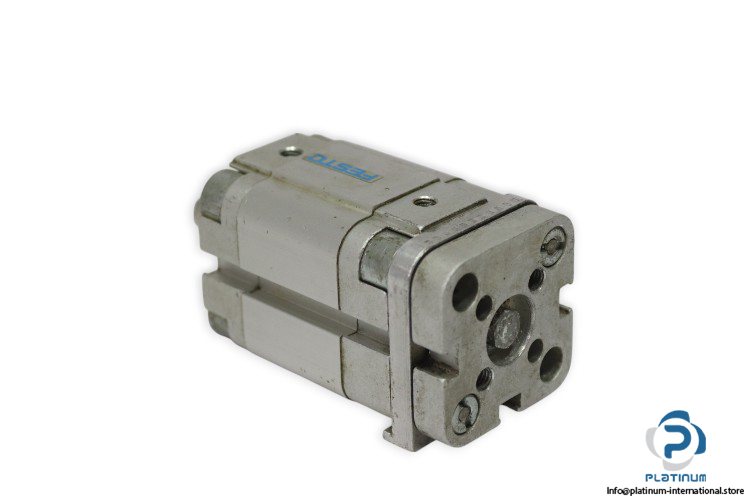

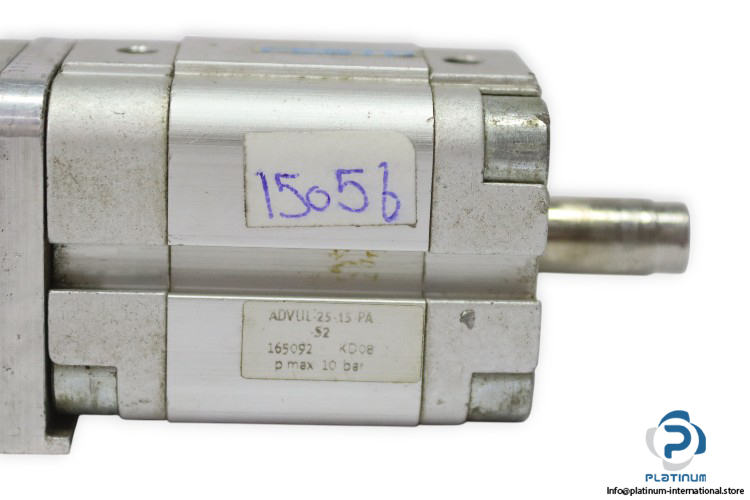

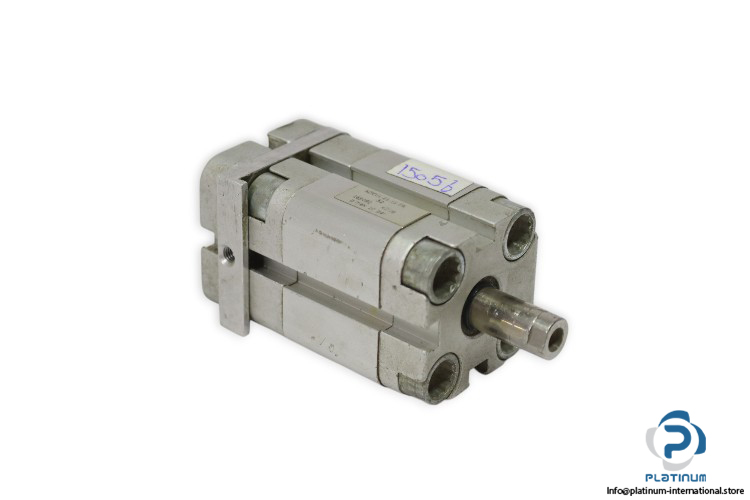

FESTO ADVUL-25-15-PA-S2 COMPACT CYLINDER
The Festo ADVUL-25-15-PA-S2 compact cylinder is a high-performance pneumatic component, designed for applications requiring precise linear motion within limited installation space. With durable materials and efficient operation, it supports a wide range of industrial automation systems. Manufacturer: Festo
Type: Compact Cylinder
Model: ADVUL-25-15-PA-S2
Part No.: 165092
Ref. Code: KD08
| Operating Medium | Compressed air |
| Design of Cylinder | Piston |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mode of Operation | Double-acting |
| Operating Pressure | 1.5 to 10 bar |
| Piston Diameter | 25 mm |
| Stroke | 15 mm |
| Pneumatic Connection | 5 mm |
| Cover Material | Wrought aluminum alloy |
| Material of Dynamic Seals | NBR |
| Piston Rod Material | High-alloy stainless steel |
| Ambient Temperature Range | -20 to 80°C |
