Festo 170253 Double Solenoid Valve
New
In stock4 unitsReady to ship
60,00$
DOUBLE SOLENOID VALVE WITH COIL
FESTO CPE18-M1H-5/3G-QS-8 valve with MSEB-3-24V DC coil offers 5/3 closed function, high air flow, and robust design for industrial pneumatic systems.5/3AirAluminumClosedcoilCPE18-M1H-5/3G-QS-8dcdie-castDoubleFestoIndustrialMSEB-3-24VPneumaticsolenoidValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

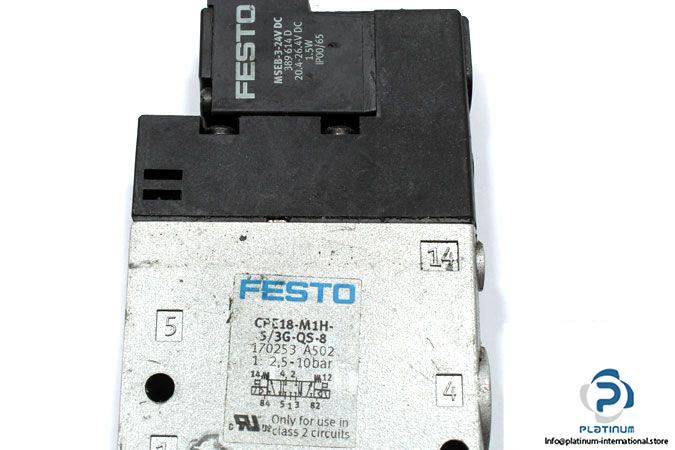

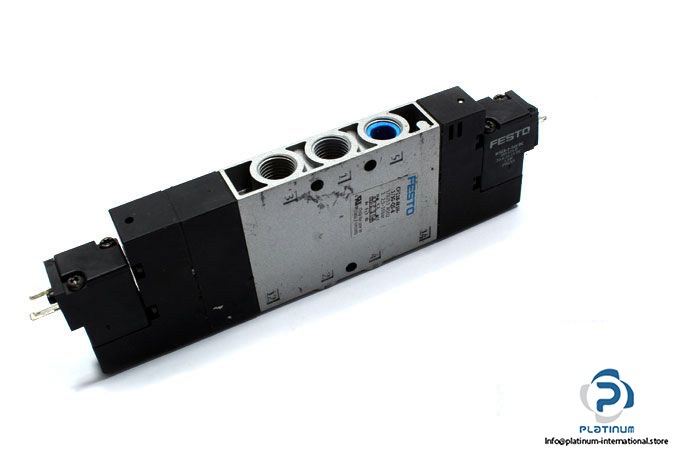

FESTO CPE18-M1H-5/3G-QS-8 DOUBLE SOLENOID VALVE WITH COIL
The FESTO CPE18-M1H-5/3G-QS-8 is a precision-engineered double solenoid valve designed for high-speed, reliable air control in industrial systems. It features a piston gate design, die-cast aluminum body, and is equipped with the FESTO MSEB-3-24V DC coil for optimal performance.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: CPE18-M1H-5/3G-QS-8
Part No.: 170253
Solenoid Coil Technical Information
| Fluid | Air |
| Design | Piston gate valve |
| Function | 5/3 closed |
| Type of Actuation | Electrically |
| Operating Pressure | 2.5 ... 10 bar |
| Nominal Flow Rate | 850 l/min |
| Pneumatic Connection | QS-8 |
| Material | Die-cast aluminum |
| Ambient Temperature | -5 / 50 °C |
| Attachment | FESTO MSEB-3-24V DC SOLENOID COIL |
| Part No. | 389614 D |
| Supply Voltage | 20.4 ... 26.4 V DC |
| Power Consumption | 1.5 W |
| Protection Class | IP00 / IP65 |
