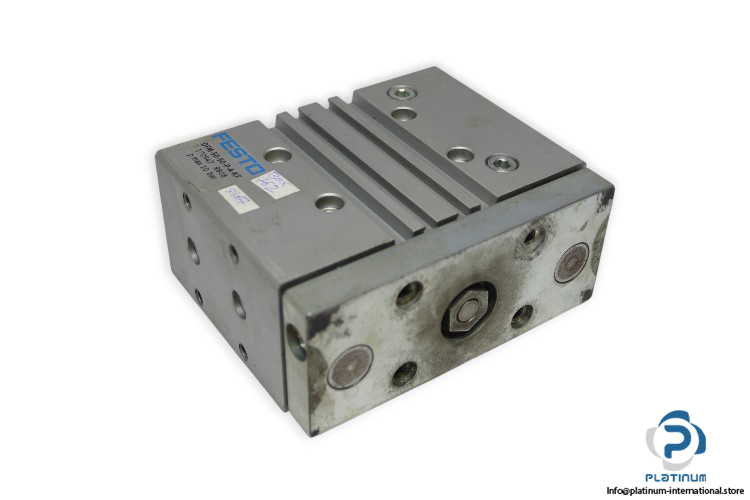

Festo 170947 Guided Actuator

Manufacturer: FESTO
Type: Guided actuator

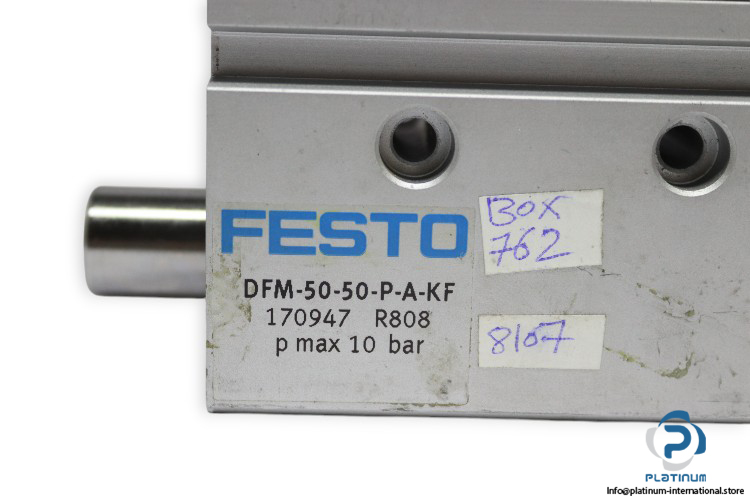

Model: DFM-50-50-P-A-KF
Part No.: 170947

Piston diameter: 50 mm
Theoretical force at 6 bar, advancing: 1178 N
Stroke: 50 mm
Cushioning: Elastic cushioning rings/pads at both ends
Position sensing: For proximity sensor
Distance of centre of gravity of payload to yoke plate xs: 50 mm
Guide: Recirculating ball bearing guide
Structural design: Guide
Position sensing: For proximity sensor
Operating pressure: 1 bar … 10 bar
Max. speed: 0.6 m/s
Mode of operation: Double-acting
Operating medium: Compressed air
Pneumatic Connection: G1/4
Cover material: Wrought aluminum alloy
Housing material: Wrought aluminum alloy
