SINGLE SOLENOID VALVE
FESTO MEBH-5/2-1/8-L-B single solenoid valve with MSEB-3-24V DC coil ensures reliable 5/2 monostable function and high flow in industrial pneumatic systems.24v5/2AircoilControldcFestoG1/8IndustrialMEBH-5/2-1/8-L-BMonostableMSEB-3-24VPneumaticSinglesolenoidValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

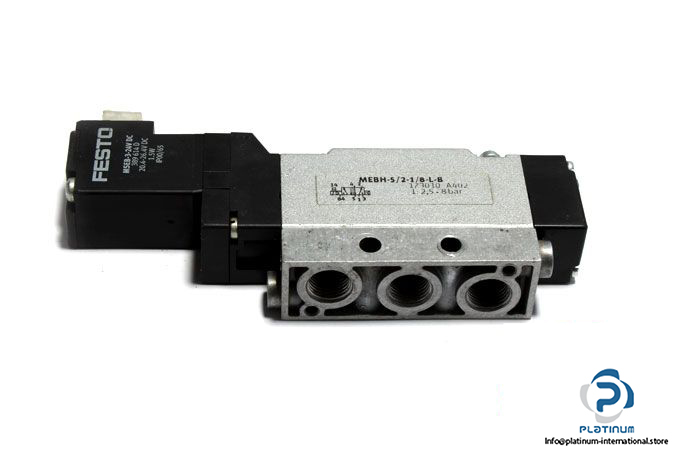

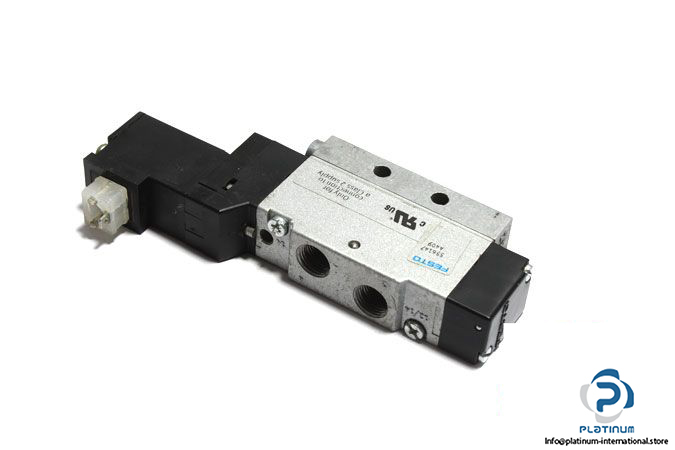

FESTO MEBH-5/2-1/8-L-B SINGLE SOLENOID VALVE WITH COIL
The FESTO MEBH-5/2-1/8-L-B is a high-performance single solenoid valve designed for industrial pneumatic applications. It features a monostable 5/2 valve function and robust aluminium construction. The valve is paired with the FESTO MSEB-3-24V DC solenoid coil for reliable and efficient operation.
Manufacturer: FESTO
Type: Single Solenoid Valve

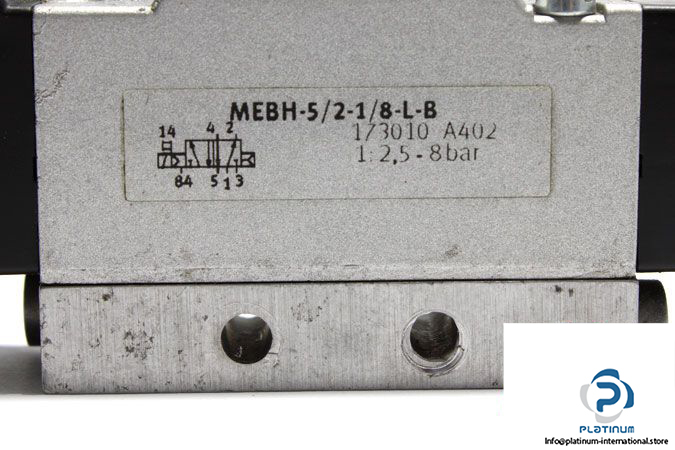

Model: MEBH-5/2-1/8-L-B
Part No.: 173010
Coil Technical Information
| Fluid | Air |
| Design Structure | Piston slide |
| Valve Function | 5/2 monostable |
| Type of Actuation | Electrically |
| Operating Pressure | 2.5 / 8 bar |
| Nominal Flow Rate | 600 l/min |
| Material | Die-cast aluminium |
| Pneumatic Connection | G1/8 |
| Ambient Temperature | -5 / 50 °C |

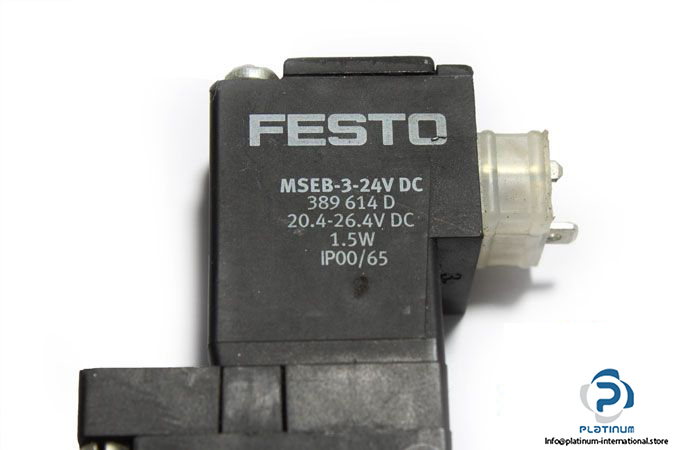

| Solenoid Coil Attachment | FESTO MSEB-3-24V DC |
| Part No. | 389614 D |
| Supply Voltage | 20.4 ... 26.4 V DC |
| Power Consumption | 1.5 W |
| Protection Class | IP65 |
