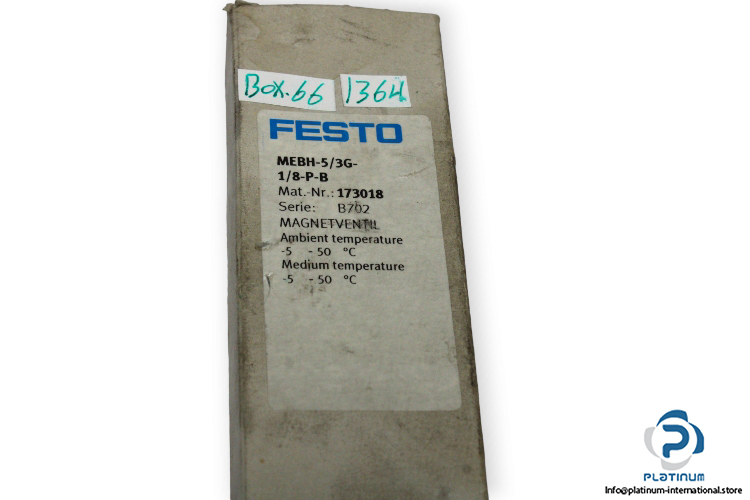

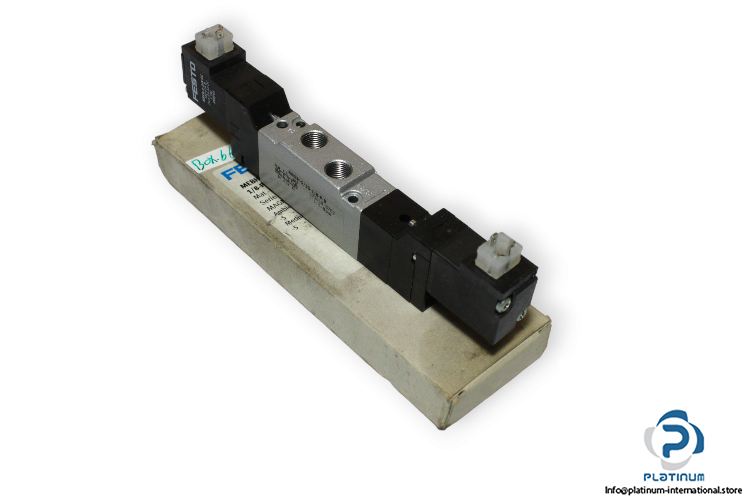

Festo 173018 Double Solenoid Valve
New
In stock1 unitReady to ship
DOUBLE SOLENOID VALVE
FESTO MEBH-5/3G-1/8-P-B with MSEB-3-24V DC coil offers a 5/3 closed function, 500 l/min flow rate, and robust air control for industrial automation.24v5/3AirAluminumcenterClosedcoilControldcdie-castDoubleFestoIndustrialMEBH-5/3G-1/8-P-BPneumaticsolenoidValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

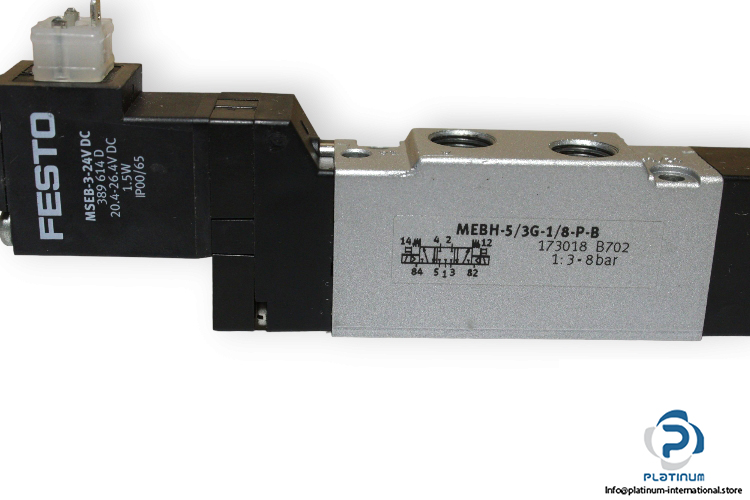

FESTO MEBH-5/3G-1/8-P-B DOUBLE SOLENOID VALVE WITH COIL
The FESTO MEBH-5/3G-1/8-P-B is a high-performance double solenoid valve designed for precise air control in pneumatic systems. Featuring a 5/3 closed function, robust die-cast aluminum body, and reliable electrical actuation, it is ideal for automation and industrial applications.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: MEBH-5/3G-1/8-P-B
Part No.: 173018
Coil Technical Information
| Fluid | Air |
| Design | Piston slide |
| Valve Function | 5/3 closed |
| Type of Actuation | Electrically |
| Operating Pressure | 3 ... 8 bar |
| Nominal Flow Rate | 500 l/min |
| Pneumatic Connection | G1/8 / Sub-base |
| Material | Die-cast aluminum |
| Ambient Temperature | -5 / 50 °C |
| Attachment | FESTO 389614 SOLENOID COIL |
| Part No. | 389614 |
| Supply Voltage | 20.4 ... 26.4 V DC |
| Power Consumption | 1.5 W |
| Protection Class | IP00 / IP65 |
