Festo 173022 Double Solenoid Valve
New
Available on request
111,11$
DOUBLE SOLENOID VALVE WITH COIL
FESTO MEBH-5/3E-1/8-B valve with MSEB-3-24V DC coil offers 5/3 exhausted function and 500 l/min flow rate for precision pneumatic applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

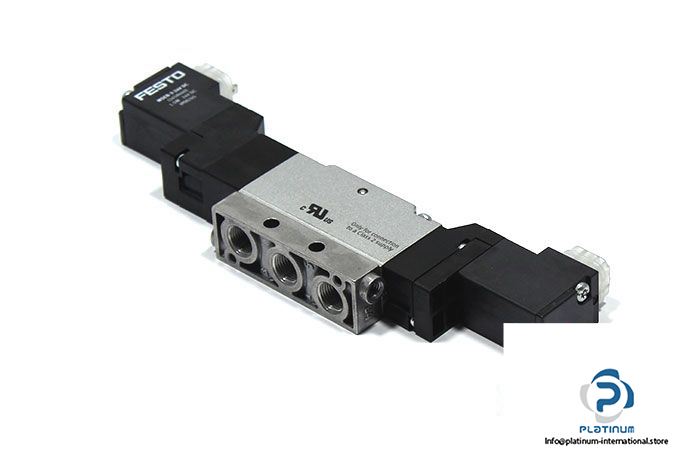

FESTO MEBH-5/3E-1/8-B DOUBLE SOLENOID VALVE WITH COIL
The FESTO MEBH-5/3E-1/8-B is a precision-engineered double solenoid valve built for high-performance pneumatic systems. It comes with the FESTO MSEB-3-24V DC solenoid coil, ensuring fast response and reliable control. Ideal for automation environments requiring robust flow management.
Manufacturer: FESTO
Type: Double Solenoid Valve

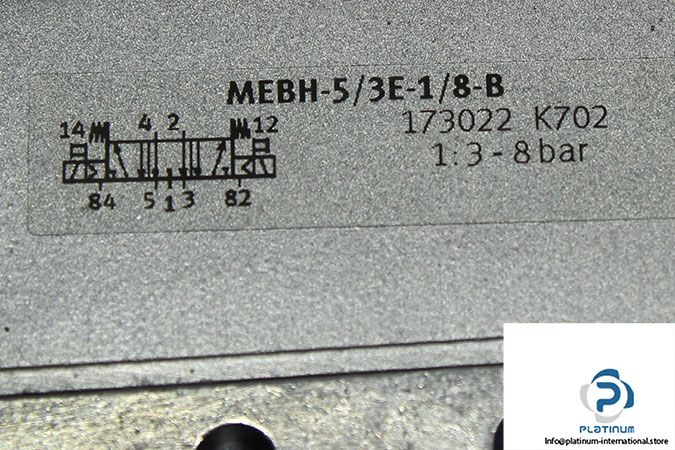

Model: MEBH-5/3E-1/8-B
Part No.: 173022
Coil Technical Information
| Fluid | Air |
| Design | Piston Slide |
| Function | 5/3 Exhausted |
| Type of Actuation | Electrically |
| Operating Pressure | 3 ... 8 bar |
| Nominal Flow Rate | 500 l/min |
| Pneumatic Connection | G1/8 |
| Material | Die-cast Aluminum |
| Ambient Temperature | -5 / 50 °C |

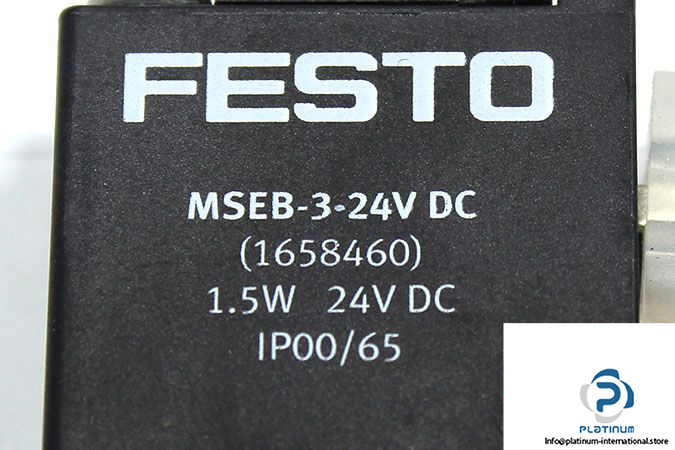

| Attachment | FESTO MSEB-3-24V DC Solenoid Coil |
| Part No. | 1658460 |
| Supply Voltage | 24 V DC |
| Power Consumption | 1.5 W |
| Protection Class | IP00 / IP65 |
