Festo 173036 Double Solenoid Valve
New
In stock6 unitsReady to ship
DOUBLE SOLENOID VALVE
FESTO JMEBH-5/2-1/8-P-B solenoid valve with MSEB-3-24V DC coil, offering 5/2 functionality, 650 l/min flow rate, and IP65 protection in a robust die-cast aluminum body.5/2AircoilDoubleFestoflowG1/8HighIndustrialIP65JMEBH-5/2-1/8-P-BMSEB-3-24VPneumaticProtectedRatesolenoidSub-BaseValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

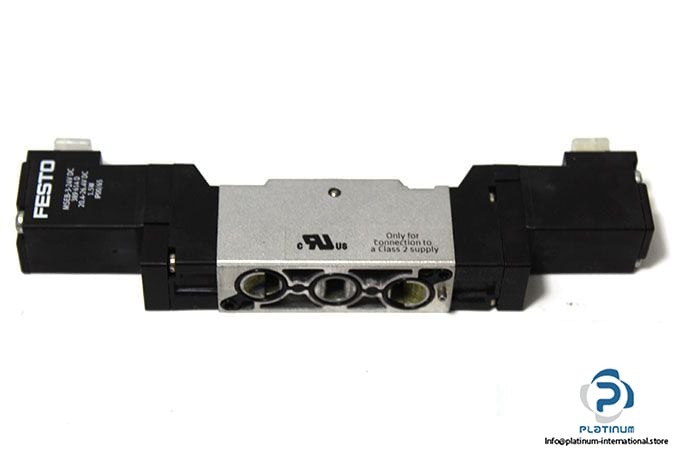

FESTO JMEBH-5/2-1/8-P-B DOUBLE SOLENOID VALVE WITH COIL
The FESTO JMEBH-5/2-1/8-P-B is a high-performance double solenoid valve engineered for precision control in pneumatic systems. With a robust die-cast aluminum body and an integrated FESTO MSEB-3-24V DC coil, this unit ensures reliable switching, long service life, and energy efficiency in industrial environments.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: JMEBH-5/2-1/8-P-B
Part No.: 173036
| Fluid | Air |
| Design | Piston Slide |
| Function | 5/2 Way |
| Type of Actuation | Electrically |
| Operating Pressure | 1.5 “ 8 bar |
| Nominal Flow Rate | 650 l/min |
| Pneumatic Connection | Sub-base size / G1/8 |
| Material | Die-cast Aluminum |
| Ambient Temperature | -5 to 50 °C |

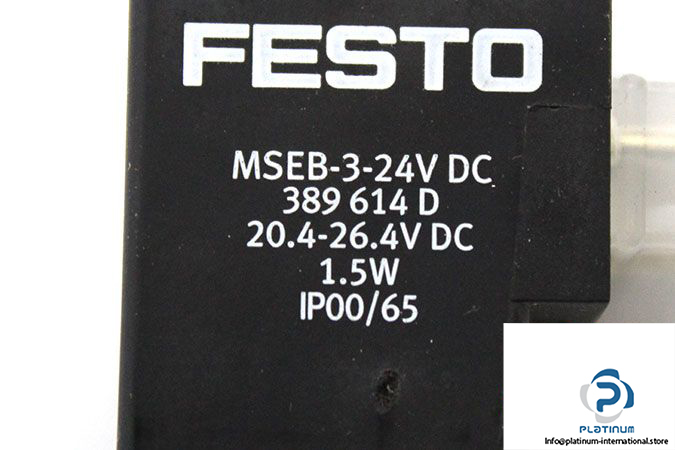

| Attachment | FESTO MSEB-3-24V DC Solenoid Coil |
| Part No. | 389614 D |
| Supply Voltage | 20.4 “ 26.4 V DC |
| Power Consumption | 1.5 W |
| Protection Class | IP65 |
