Festo 173135 Single Solenoid Valve
New
Available on request
70,00$
SINGLE SOLENOID VALVE
FESTO MEH-5/2-1/8-P-L-B single solenoid valve with 24V DC coil offers 600 l/min flow rate, 5/2 monostable control, and compact sub-base connection.24v5/2AircoilControldcFestoIndustrialMEH-3-24VMEH-5/2-1/8-P-L-BMonostablePneumaticSinglesolenoidValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

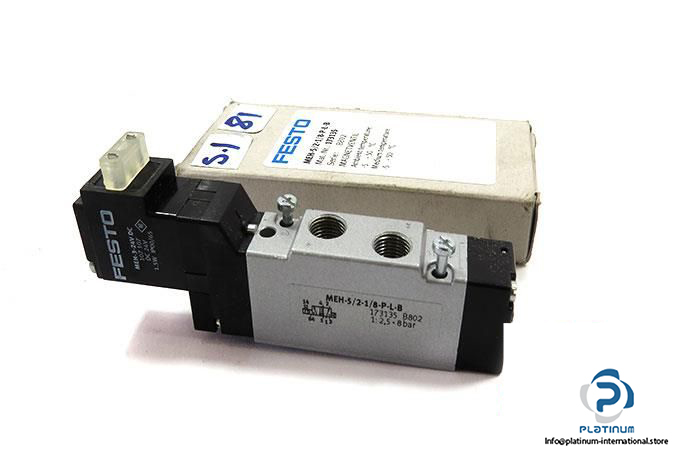

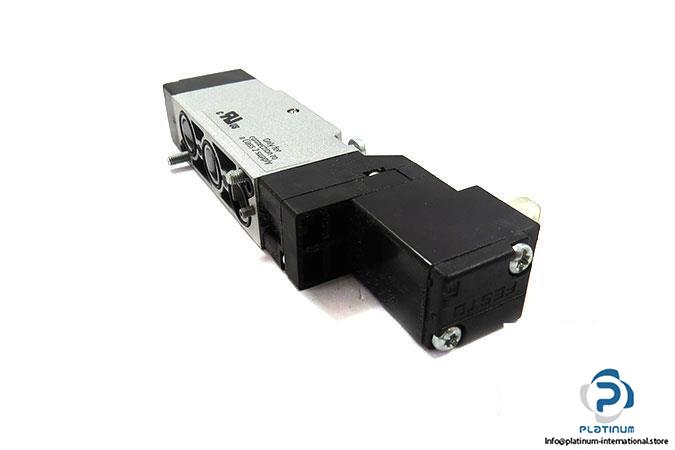

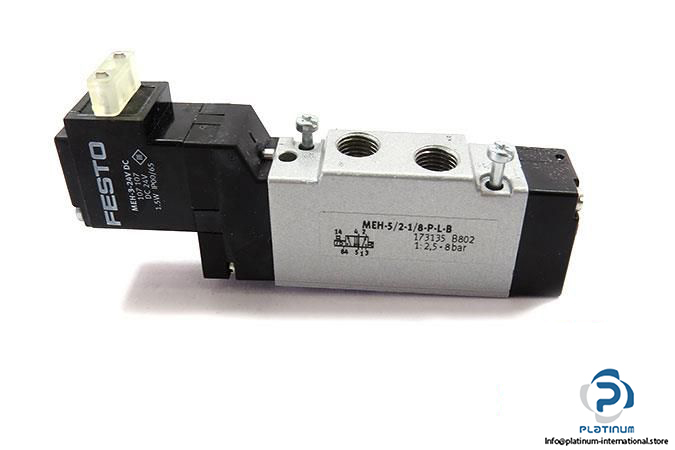

FESTO MEH-5/2-1/8-P-L-B SINGLE SOLENOID VALVE WITH COIL
The FESTO MEH-5/2-1/8-P-L-B is a high-performance single solenoid valve designed for precision pneumatic applications. Featuring a robust piston slide design and monostable 5/2 function, it ensures consistent and efficient air control. This unit includes the FESTO MEH-3-24V DC solenoid coil, delivering reliable actuation with low power consumption and IP65 protection.
Manufacturer: FESTO
Type: Single Solenoid Valve

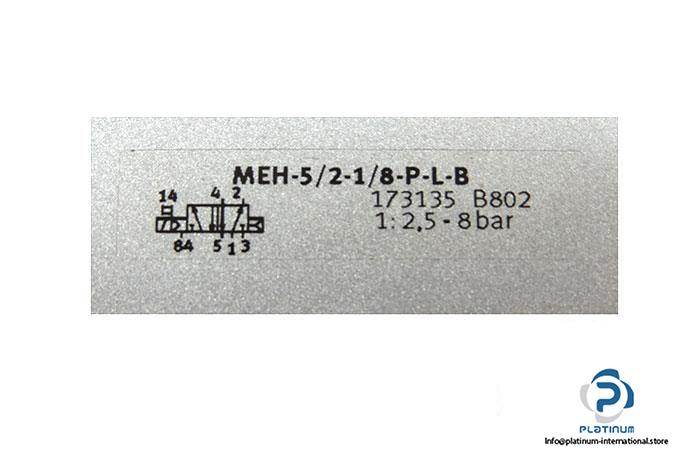

Model: MEH-5/2-1/8-P-L-B
Part No.: 173135
Valve Technical Information
- Fluid: Air
- Design: Piston slide
- Function: 5/2 monostable
- Type of Actuation: Electrically
- Operating Pressure: 2.5 to 8 bar
- Nominal Flow Rate: 600 l/min
- Pneumatic Connection: Sub-base / G1/8
- Material: Die-cast aluminum
- Ambient Temperature: -5 to 50 °C
Attachment: FESTO MEH-3-24V DC SOLENOID COIL
Manufacturer: FESTO
Type: Solenoid Coil
Model: MEH-3-24V DC
Part No.: 107107
- Supply Voltage: 24 V DC
- Power Consumption: 1.5 W
- Protection Class: IP65
