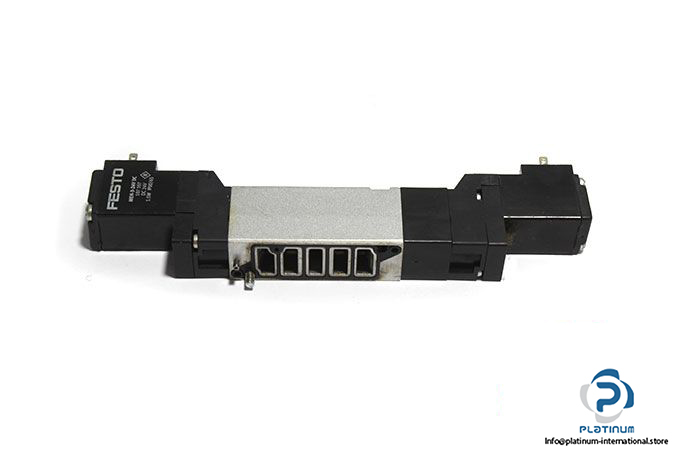

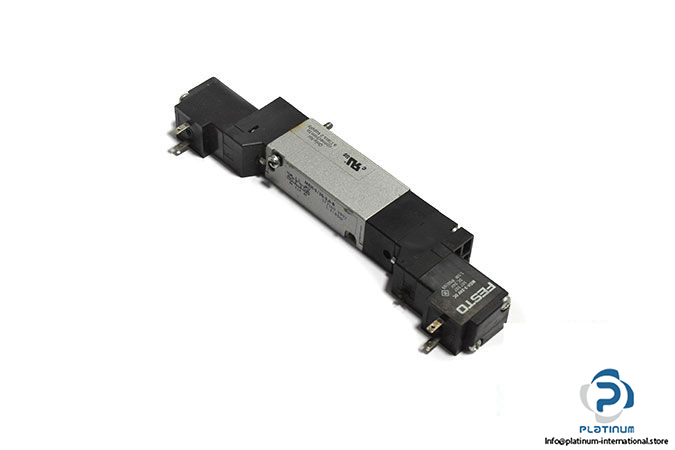

FESTO MEH-5/3G-5,0-B DOUBLE SOLENOID VALVE WITH COIL
The FESTO MEH-5/3G-5,0-B is a precision-engineered double solenoid valve designed for high-performance pneumatic control. Built with a piston slide structure and robust aluminium die-cast body, it features a 5/3 closed valve function and comes with a reliable MEH-3-24V DC solenoid coil for responsive operation.
Manufacturer: FESTO
Type: Double Solenoid Valve

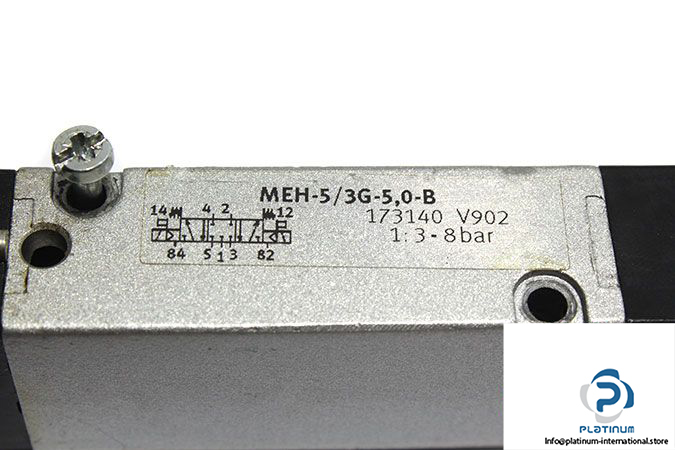

Model: MEH-5/3G-5,0-B
Part No.: 173140
Solenoid Coil Technical Information
| Fluid | Air |
| Design Structure | Piston slide |
| Valve Function | 5/3 closed |
| Type of Actuation | Electrically |
| Operating Pressure | 3 / 8 bar |
| Nominal Flow Rate | 600 l/min |
| Pneumatic Connection | Sub-base |
| Material | Aluminium die cast |
| Ambient Temperature | -5 / 50 °C |

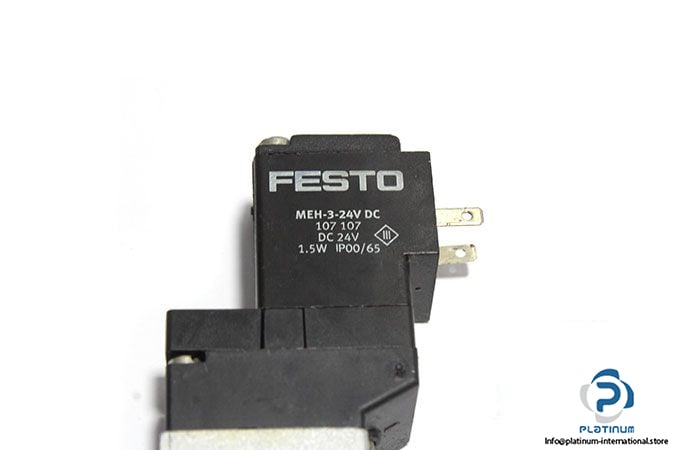

| Attachment | FESTO 107107 SOLENOID COIL |
| Part No. | 107107 |
| Supply Voltage | 24 V DC |
| Power Consumption | 1.5 W |
| Protection Class | IP65 |
