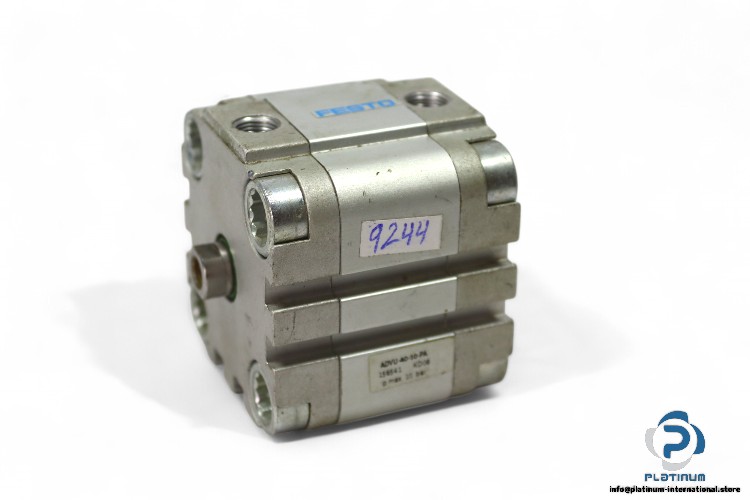

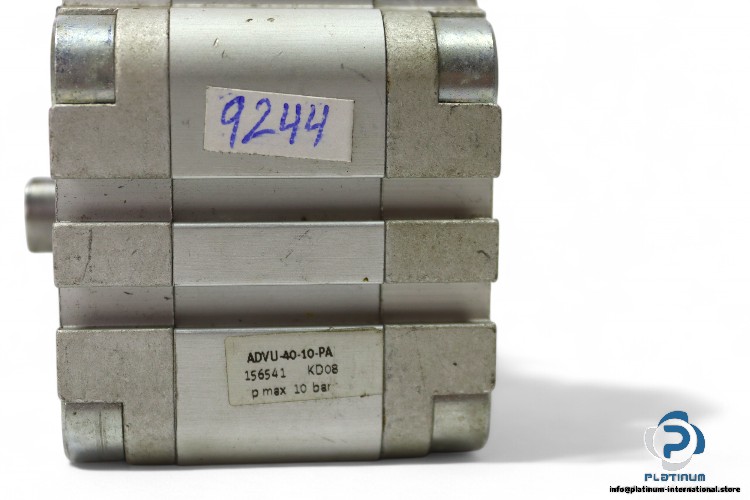

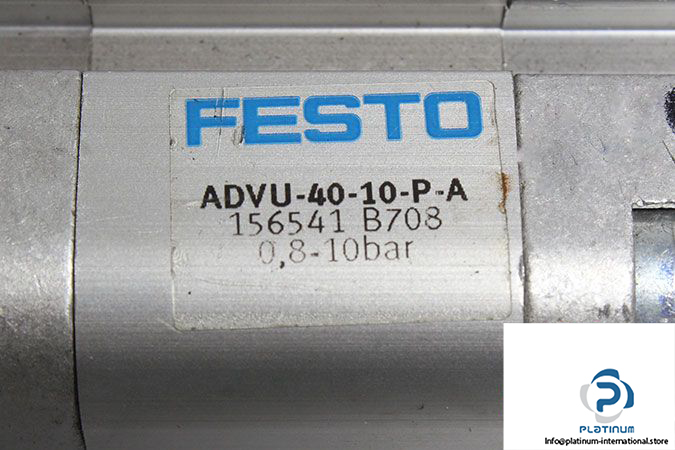

Festo 156541 Compact Cylinder

Manufacturer: FESTO

Type: Double Acting Compact Cylinder

Model: ADVU-40-10-P-A

Part No.: 156541

Materials

..Piston rod: High alloy stainless steel

..Cylinder Tube: Wrought Aluminum alloy

Stroke Length: 10 mm

Piston Diameter: 40 mm

Piston rod end: Female thread

Operating Pressure: 0.8 … 10 bar

Mode of operation: Double-acting

Cushioning: Flexible cushioning rings/plates at both ends

Position sensing: For proximity sensing

Pneumatic Connection: G1/8

Temperature: -20 … 80 °C

Weight: 0.50 kg
