Festo 18200 Valve Terminals With 8 Valves

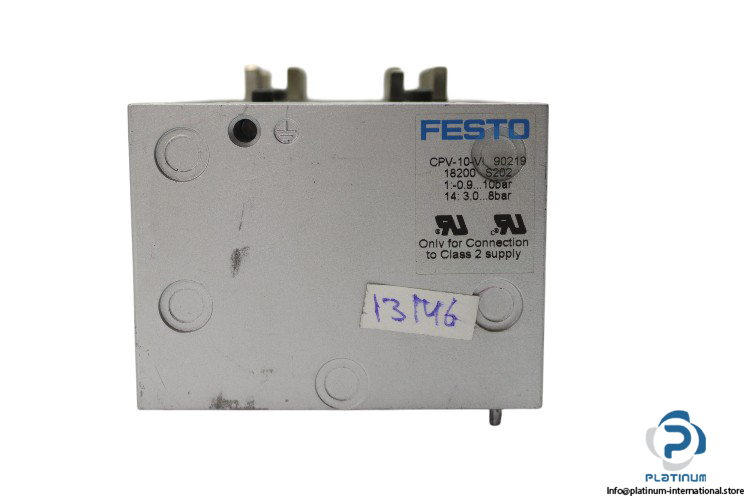

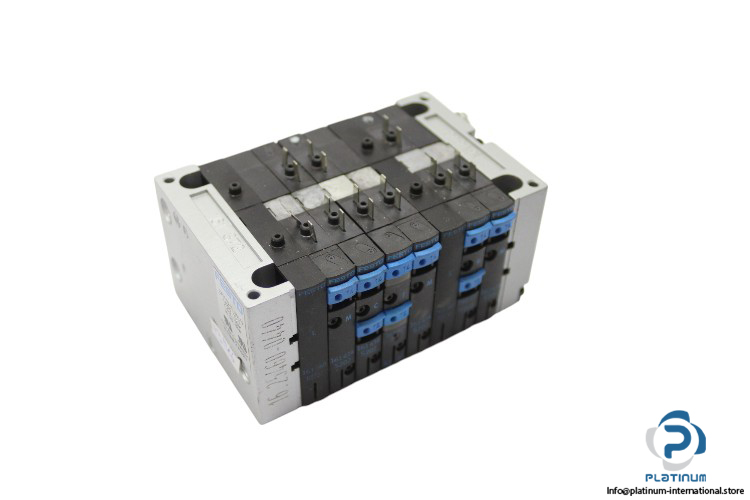

FESTO CPV-10-VI Valve Terminals With 8 Valves

The FESTO CPV-10-VI valve terminal is designed for optimal control of pneumatic systems, offering high flexibility with 8 integrated valves. The valve terminal features electromagnetically actuated piston spool valves for reliable and precise operation in industrial applications. With various valve functions and easy pneumatic connections, it provides efficient control for complex systems.

Manufacturer: FESTO

Type: Valve Terminals with 8 Valves

Model: CPV-10-VI

Part No.: 18200

Technical Data:

• Design: Electromagnetically Actuated Piston Spool Valve

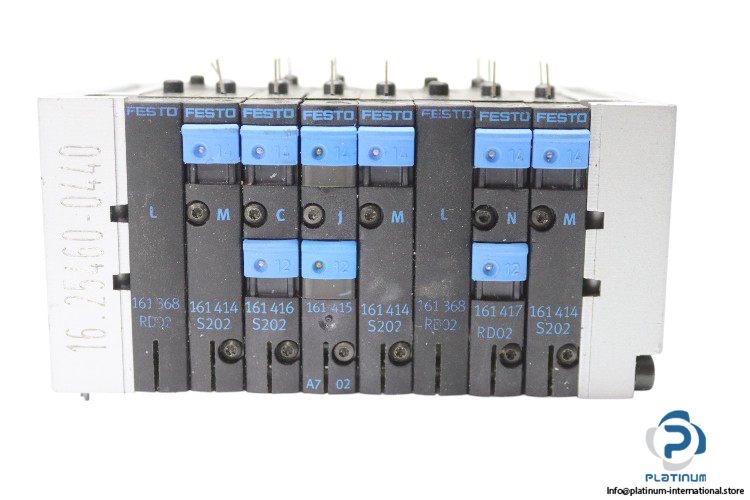

• Valve Functions:
• 2x Air Solenoid Valve (FESTO 161368)
• 1x Air Solenoid Valve (FESTO 161416)
• 3x Air Solenoid Valve (FESTO 161414)
• 1x Air Solenoid Valve (FESTO 161415)
• 1x Air Solenoid Valve (FESTO 161417)
• Width: 10 mm
• Nominal Flow Rate without Fitting: 400 l/m
• Pneumatic Connections:
• Supply Ports (1/11): G1/8
• Exhaust Ports (3/5): G3/8
• Working Ports (2/4): M7
• Pilot Air Supply Ports (12/14): M5
• Pilot Exhaust Air Ports (82/84): M5
• Operating Pressure:
• Port (1): -0.9 / . 10 bar
• Port (2): 3 / . 8 bar
• Ambient Temperature: -5 / . +50 °C
• Operating Voltage: 24 VDC
