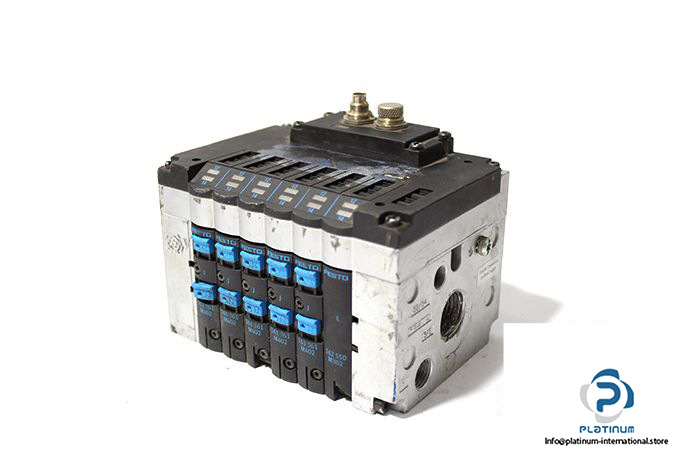

Festo 18210 Valve Terminals With 6 Valves

Manufacturer: FESTO

Type: Valve Terminals With 6 Valves

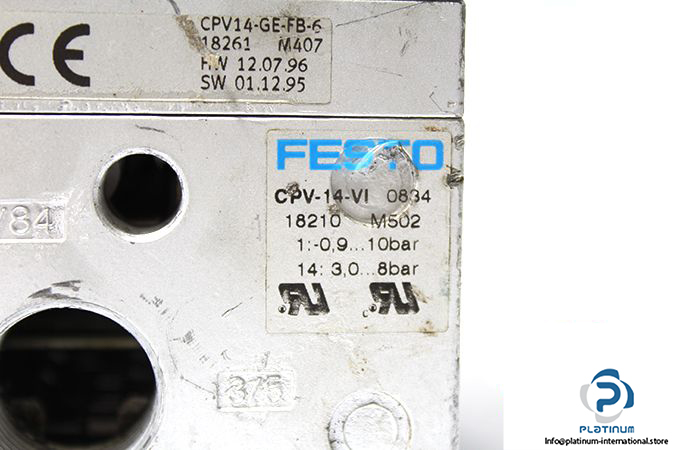

Model: CPV-14-VI

Part teNo.: 18210

Design: Electromagnetically Actuated Piston Spool Valve

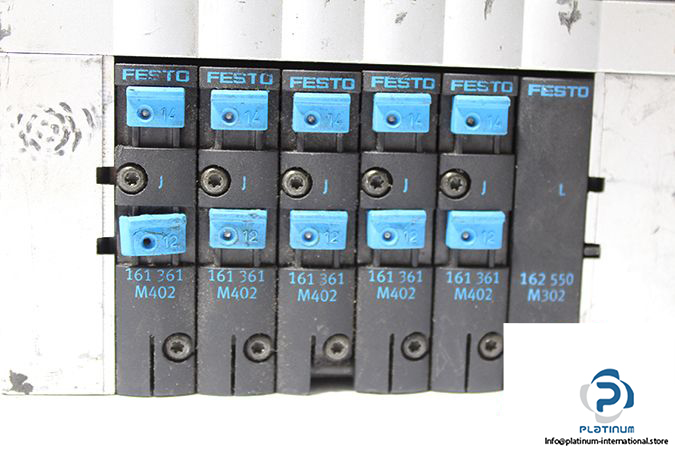

Valve functions:

5x 5/2Air solenoid valve (FESTO 161361)

1x Separator plate (FESTO 162550)

Width: 14 mm

Nominal Flow Rate without Fitting: 800 l/m

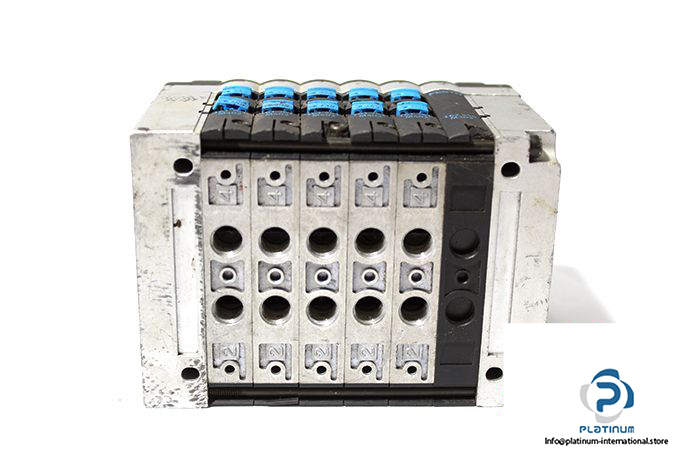

Pneumatic Connections:

Supply ports (1/11): G1/4

Exhaust port (3/5): G1/2

Working ports (2/4): G1/8

Pilot air supply ports (12/14): 1/8

Pilot Exhaust Air Ports (82/84): 1/8

Operating pressure:

Port (1): -0.9 …. 10 bar

Port (14): 3 …. 8 bar

Electrical connection: 5 pin-plug

Ambient Temperature: -5 …. +50 °C

Operating voltage: 24 VDC

Weight: 1.19 kg
